Home / Products / Generator Spark Plug / Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine
Quality Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine factory
Quality Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine factory
Quality Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine factory
Quality Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine factory

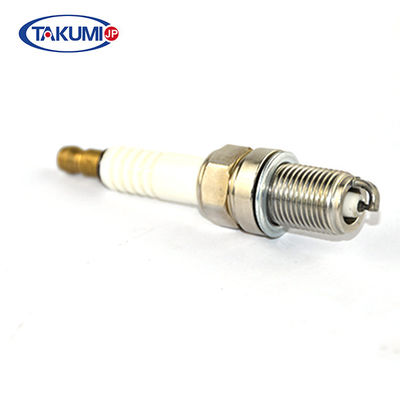

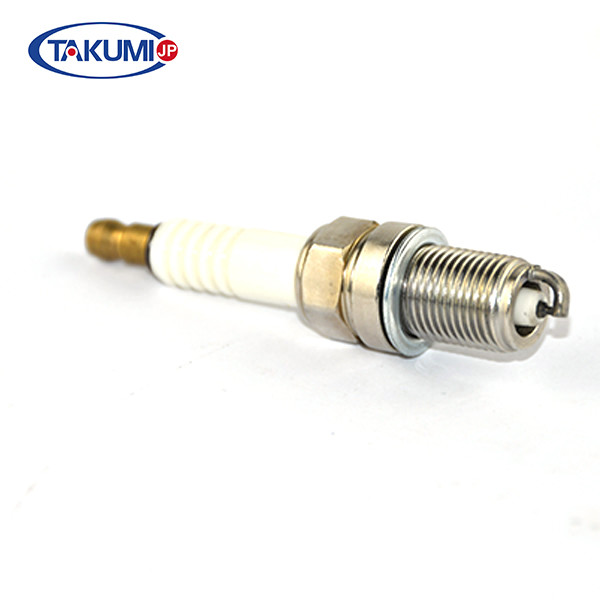

Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine

Basic Properties
Place of Origin: CHINA
Brand Name: TAKUMI
Model Number: Champion FB77WPCC Denso GI3-1 GL3-3
Trading Properties
Minimum Order Quantity: 20 pcs
Price: by discussed
Standard Packaging: 1. 4 pcs spark plugs in a tin 2.1 piece in plastic box 3. Pack as required
Delivery Time: 25 working days
Payment Terms: D/A, D/P, L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Tags

industrial spark plugs

ignition spark plug

engine spark plugs
Product Summary
Champion FB77WPCC Denso GI3-1 GL3-3 Generator Spark Plug 243-4291 TAKUMI Type R5B12-77C Thread M18X1.5 Reach 20.6mm Hex 22.2mm Seat Type Flat Gap 0.3mm Heat Range 77 Electrode Type Double J gap iridium electrode Resistor or Non-Resistor Resistor 243-4291 engines G3500 G3600 Series CUMMINS Q19G QSV ...

Product Details

Highlight:

FB77WPCC Natural Gas Engine

,

FB77WPCC

,

FB77WPCC Spark Plugs
Thread: M18*1.5
Reach: 20.6mm
Hex: 22.2mm
Replacement: Champion FB77WPCC Denso GI3-1 GL3-3 243-4291
Engine: G3500 G3600 / Guascor FG180 CUMMINS Q19G QSV
Engine Type: Natural Gas ,Biogas ,Landfill Gas ,Gasoline
Product Description



Champion FB77WPCC Denso GI3-1 GL3-3 Generator Spark Plug  243-4291



Corrosion Resist Double Iridium Spark Plugs Champion FB77WPCC Natural Gas Engine





TAKUMI Type



R5B12-77C



Thread



M18X1.5

Reach



20.6mm



Hex



22.2mm





Seat Type



Flat





Gap



0.3mm



Heat Range



77



Electrode Type



Double J gap iridium electrode





Resistor or Non-Resistor





Resistor




 243-4291

engines

G3500 G3600 Series

CUMMINS Q19G QSV

GUASCOR FG180

FGLD 180 240 360 480

WARTSILA







Features:

1. Iridium electrode tip to extend the lifetime of spark plug

2. Advanced anti-corrosion, anti-fouling properties

3. Improved fuel economy

4. Equal life time to the original

5. Competitive price than the original








1.The TAKUMI design is open at the end, so the spark travels directly toward the air-fuel mixture which maximizes the burn. The result is a faster flame kernel, a more complete combustion, greater power and higher fuel efficiency.

2.Unburned fuel is bad for our planet and wasteful of your hard-earned dollars. Help to make a difference. Replace your standard plug with TAKUMI spark plug for a cleaner, more complete burn.

3.TAKUMI is an ideal opportunity for you to help reduce the amount of carbon monoxide, carbon dioxide and other harmful hydrocarbons that are exhausted into the air we
breathe. Let's join together to creat a better world!







Specifiions



Plug Type: FB77WPCC
Hex Size (Inch): 0.875
Hex Size (MM): 22.23
Thread Size (Inch): 0.709
Thread Size (MM): 18
Thread Reach (Inch): 0.813
Taper Diameter (Inch): 0.29
Installed Height: 3.5
Gap (Inch): 0.01-0.013
Gap (MM): 0.25-0.33
Center Electrode Diameter (Inch): 0.028
Center Electrode Material: Iridium Firing Tip
Ground Electrode Material: Platinum Pad Surface
Resistor Plug: Y


Replacement spark plugs for Champion FB77WPCC:
Brand Model
Beru 18GZ6-77-2
Beru Z202
Beru Z329
Bosch 7301
Bosch 7305
Bosch 7306
Bosch MR3DPP330
CUMMINS 4090121
CUMMINS 4098162
CUMMINS 4924504
Denso GI3-1A
Denso GI3-3A
Denso GI3-5A
Denso GI31A
Denso GI33A
 436782
WAUKESHA 60999Z
WAUKESHA 69919D
