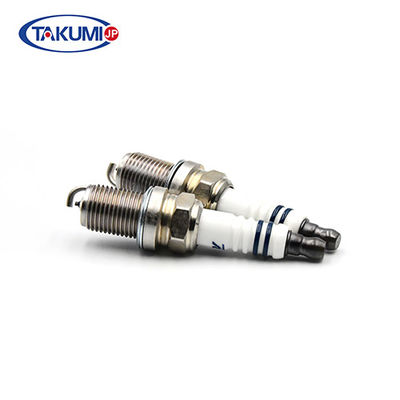

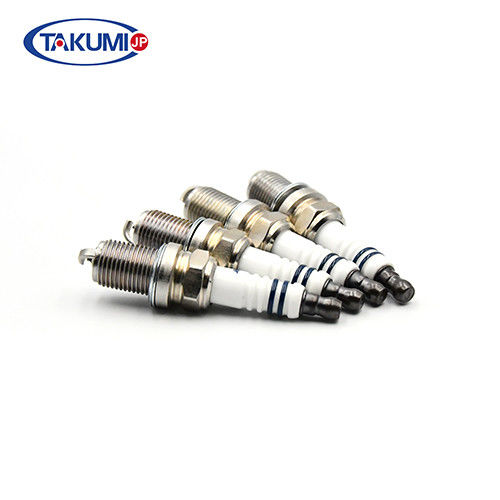

J Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW

Good quality Auto Spark Plugs for sales
Good quality Auto Spark Plugs for sales
This mutual cooperation last for about 10 years,and must admit the service they provide is aboved expected. Our concern always been well solved.

—— Mr.Taraghi

The products are with good quality. I trust them because I've never been disapointed with them.The after sales also very good.

—— Tomas

I'm Online Chat Now

J Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW

China J  Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW supplier
J  Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW supplier J  Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW supplier

Large Image :  J Electode Auto Spark Plugs , IK20 Racing Spark Plugs For TOYOTA NISSAN BMW

Product Details:

Place of Origin: China
Brand Name: Torch
Certification: TS16949 ISO9001
Model Number: K6RAIP

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs
Packaging Details: Plastic box, white box, Carton
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300000 pcs month
Contact Now
Detailed Product Description
Apply For: TOYOTA, NISSAN,BMW ,GM,HONDA,FIAT,VW Fit For: NGK BKR6EVX EVX-BKR6 FR7DI FR7DPP10 IK20
Electode: J Type Thread: M14x1.25
Hex: 16mm Reach: 26.5mm
Heat Range: 6 Resistor: Yes
Gap: 0.8mm Electrode Materical: Iridium Platinum



NGK BKR6EVX EVX-BKR6 BOSCH FR7DI FR7DPP10 OE144 Denso IK20 Auto Spark Plug for TOYOTA, NISSAN,BMW



Features of Spark Plug:

1. Multi-ribbed insulator eliminate flashover.

2. 95% pure alumina provides super insulation,strong resistent to heat shock,great mechanic and electric features.

3. Nickel plated shell prevents oxidation and corrosion.

4. Electrical heat crimping process ensures absolute gas-tight fit.

5. Inner sealing with conductive glass ensures a fine conductivity and sealing.

6. Multi-layer gaskets are elasticly strong and realible in sealing.

7. Copper core electrode can prevent oxidation and corrosion,makes it has good electric and heat conductivity ,enables the spark plug has a long service life.



Model K6RAIP
Thread Size M14x1.25
Reach 19mm (3/4”)
Hex 5/8" (16mm)
Seat Type Gasket
Gap 0.8
Heat Range 6
Electrode Type J Type
Resistor yes
Center Electrode Materical Iridium
Ground Electrode Material Platinum





Operation:

   The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.

   As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.

   The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.



Cross reference:





  • NGK BKR6EVX
  • Bosch FR7DI
  • Denso Ik20



Apply for:

  • TOYOTA, NISSAN,BMW
  • ,GM,HONDA,FIAT,VW
  • CAMRY,LS400,BLUEBIRD
  • X3/X5,EXCELLE/AEVO
  • FIT,SIENA/PALIOWEEKEND
  • PASSAT



Packaging and delivery:

  1. Color box, foam package.
  2. Express, by air, by sea or according customers' request.



Company Profile:



Torch is the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certification. The high quality of our products is the same as famous brands all over the world, while our price is more competitive.





Our Advantages:



1. Over 50 years experiences in auto parts

2. Products under ISO9001, TS 16949 quality system certification

3. Good raw material and advanced technology to ensure high quality

4. Diversified products with reliable performance and competitive factory price

5. Strict on quality and 100% inspection

6. Professional technical support and service.
