Home ProductsGenerator Spark Plug

Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7

Good quality Auto Spark Plugs for sales
Good quality Auto Spark Plugs for sales
This mutual cooperation last for about 10 years,and must admit the service they provide is aboved expected. Our concern always been well solved.

—— Mr.Taraghi

The products are with good quality. I trust them because I've never been disapointed with them.The after sales also very good.

—— Tomas

I'm Online Chat Now

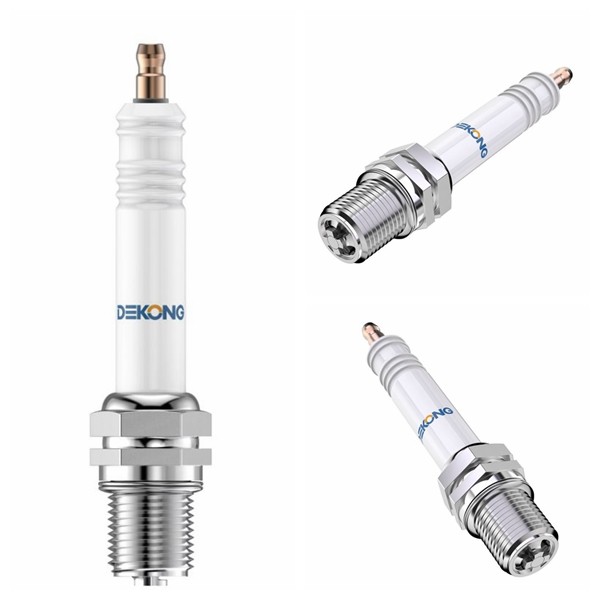

Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7

China Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7 supplier
Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7 supplier Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7 supplier Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7 supplier Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7 supplier

Large Image :  Generator Spark Plug for Champion RB76N /STITT R817L / Beru 18GZ7

Product Details:

Place of Origin: Hunan,China
Brand Name: TORCH
Certification: TS16949 ISO9001
Model Number: R1B12-76

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: By discussed
Packaging Details: Tin, Plastic box, white box, Carton
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now
Detailed Product Description
Application: Enterprise Fit: Champion RB76N /STITT R817L
Electrode: 4-Ground Thread: M18*1.5
Hex: 22.2mm Reach: 20.5mm
Seat Type: Gasket Gap: 0.3mm
Heat Range: 76 Resistor: Yes

 generator spark plugs 4-Ground match for Champion RB76N /STITT R817L

Description:

Torch Industrial  Spark Plugs are widely used in natural gas power generators, industrial plant and agricultural machinery. Designed largely for extended service life where servicing intervals are critical and the running conditions can be harsh. Please contact us if you need a quote for bulk supply.

Features:


  • Focused spark for maximum power
  • Exclusive Heat-Active alloy maintains stable operating temperature under all load conditions
  • Faster throttle response



specification:


Torch Type


R1B12-76


Thread


M18X1.5


Reach


20.5mm


Hex


22.2mm


Seat Type


Gasket


Gap


0.3mm


Heat Range


76


Electrode Type


4-Ground


Resistor or Non-Resistor

Resistor


Replacement



CHAMPION RB76N
RB76PP
BERU 18GZ7
STITT R817L



Application:
enterprise, fairbanks morse, nordberg gas engine.

Operation:

  • The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.
  • As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.
  • The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.




Our Factory:


Why choose us?

1. Over 50 years experiences in auto parts
2. Products under ISO9001, TS 16949 quality system certification
3. Good raw material and advanced technology to ensure high quality
4. Diversified products with reliable performance and competitive factory price
5. Strict on quality and 100% inspection
6. Professional technical support and service.
7. OEM accepted, tiral order accepted.

Shipping details:

1. We can ship your item by DHL,FEDEX,UPS,EMS(Express Mail Service),or other shipping ways as your request.
2. We take great care in packaging ensure that every item will shipment to you safe.


We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certification. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to visit our factory.
