Place of Origin:
Hunan,China
Brand Name:
TAKUMI
Model Number:
S-R6A12
Certifiion:
TS16949 ISO9001
Contact Us

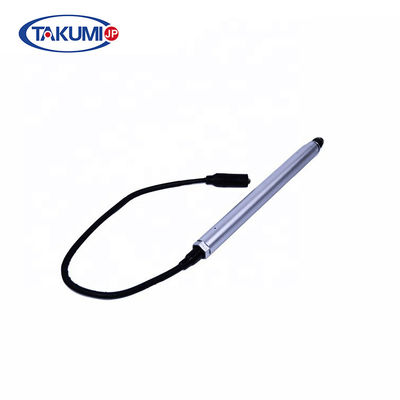

TCG 2020 Generator Spark Plug for 1245-2835 1245 2074 1230 1641
Powertek for Efficiency,durability and reliability
The TCG 2016 is highly efficient thanks to its opti- mized inlet duct, combustion chamber and POWERTEK spark plugs. With its optimized engine components, the TCG 2016 requires up to 50 % less lubriing oil than other similar gensets. Thanks to its smaller dimensions (width x length), the TCG 2016 takes up to 50 % less space than comparable systems. TEM (Total Electronic Management) controls not just the engine but the entire system including the heat supply from cogeneration. The latest technology such as our gas-mixer and TEM allows you to use a wide variety of gases.
| Spark plug data | |||
| Type | S-R6A12 | ||
| Thread | M18x1.5 | ||
| Hex | 22.2 mm | ||
| Seat Type | Flat | ||
| Gap | 0.3 mm | ||
| Resisitor or Non-Resistor | Resistor | ||
| Length of steel tube | 283 mm | ||
| Line length | 308 mm | ||
| Cross-References | |||
| Deutz: | 1245-2828/1245-2835/1245-2074/1245-2176/1245-3318/1245-3572/1245-3388/1230-1641 | ||
Technical data
|
Bore (mm) |
170 | ||
| Stroke (mm) | 195 | ||
| Displacement / cylinder (lit) | 4.425 | ||
| Speed (rpm) | 1,500 (50 Hz) 1,500 (60 Hz) |
||
| Mean piston speed (m/s) | 9.8 (1,500 rpm) |
||
| Scope of supply | Generator set, cogeneration system, generator set / cogeneration in container |
||
| Applicable gas types | Natural gas, flare gas, propane, biogas, land- fill gas, sewage gas. Special gases (e.g., coal mine gas, coke gas, wood gas, pyrolysis gas) |
||
| Engine type | V12 | V16 | V20 |
| No. of cylinders | 12 | 16 | 20 |
| Total displacement (lit) | 53.1 | 70.8 | 88.5 |
