Place of Origin:
HUNAN, CHINA
Brand Name:
TAKUMI
Model Number:
R5B12-77
Contact Us

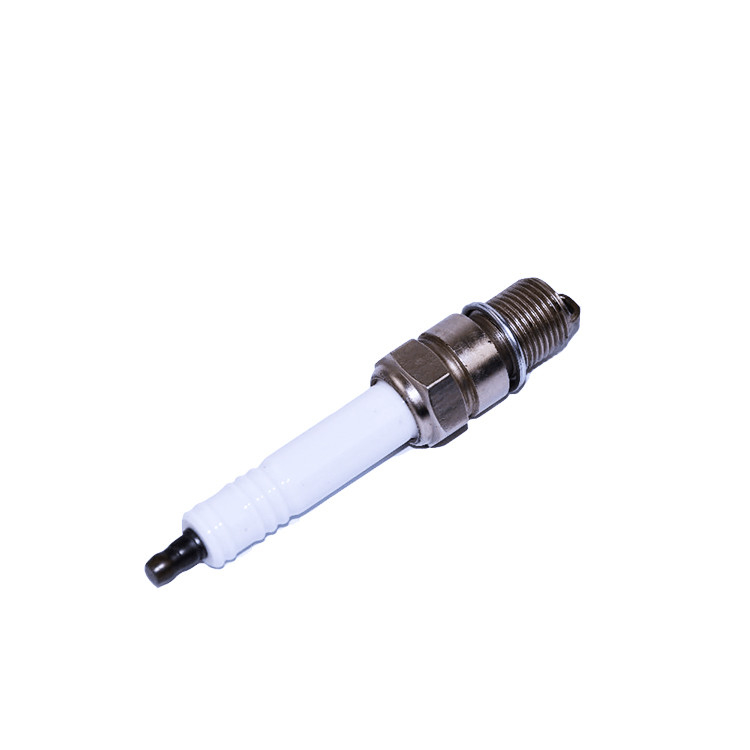

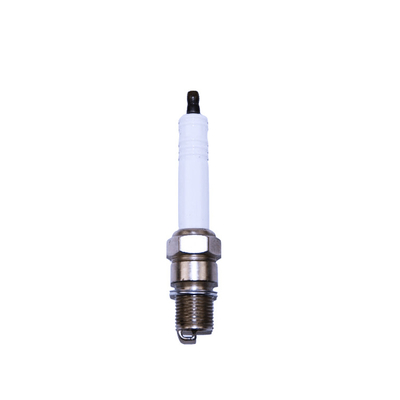

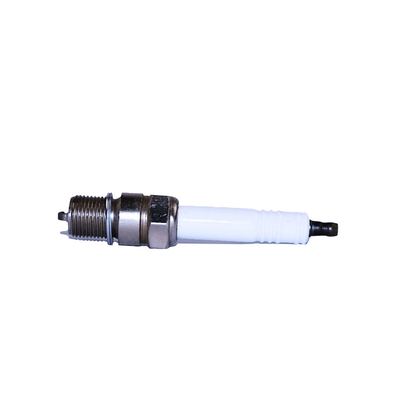

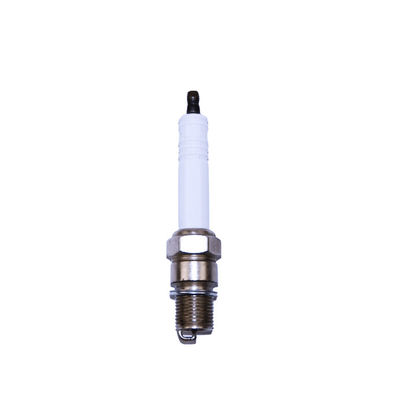

Best Seller of Iridium Engine Spark Plug Matching For WAUKESHA 60999Z
| AKUMI Type | R5B12-77 |
| Thread | M18x1.5 |
| Reach | 20.6 mm |
| Hex | 22.2 mm |
| Seat Type | Gasket |
| Gap | 0.3 mm |
| Electrode Type | Double J gap iridinum electrode |
| Resistor or Non-Resistor | Resistor |
Technical information:
Electrode: Iridium / Platinum
Thread size: M18 x 1,5mm
Reach: 13/16 (20,6mm)
Hex size: 7/8 (22,2mm)
Gap (Electrode): 0,012 (0,30mm)
Center electrode:
Material: Iridium
Typ: Standard
Ground electrode:
Material: Platinum
Typ: Standard
Cross-References:
Federal Mogul / BERU:
18GZ6-77-2 Z202 / Z329
BOSCH:
7301 / 7305 / 7306 / MR3DPP330
erpillar:
243-4291 / 301-6663 / 479-7702
CUMMINS:
4090121 / 4098162 / 4924504 / 4010981 / 2866879
DENSO:
GI3-1A / GI3-3A / GI3-5A / GI31A / GI33A
WAUKESHA:
60999Z / 69919D
GATEWAY:
1175112 / 1177512 / 1176112
ALTRONIC:
L1863B / L1863IP / L1863DP
STITT:
RL807LL
The Champion FB77WPCC works in the following engine appliions:
/ erpillar:
G3508 / G3512 / G3516 / G3516B / G3520 / G3520C / G3600 Series
Cummins:
QSV 81G / QSV 91G / QSK 19G / QSK 45G / QSK 60G / QSK 38G / QSK 50G
Guascor:
FG180 / FGLD180 / FG240 / FGLD240 / FGLD360 / FGLD480 / SFGLD480
Perkins:
4000 Series
Superior:
1706G2 / 1712G1 / 2400 G Series
Waukesha:
AT27GL Series - 13/16" Rch Heads / P48 / L36 / H24 / F18 / P9390GL - 13/16 Rch Heads
L7044GSI - 13/16" Rch Heads / 7042GL - 13/16" Rch Heads / L5790GL - 13/16" Rch Heads
F3521GL - 13/16 Rch Heads / L5108GL - 13/16" Rch Heads / L5115GL
F2895GL - 13/16 Rch Heads
RB77WPCC iridium center electrode OE quality Generator/Ignitoin spark plug
TAKUMI Group Spark Plug Factory is the No.1 OE spark plug manufacturer in China, and covers
approximately 60% of Chinese OE market.
We have the most reliable welding technologies of platinum and iridium; therefore, we can
produce high quality spark plugs competing with any other supplier.
Now, we are asked to manufacture spark plug as OE replacement for some famous brands.
Copper Core Electrode Helps Transfer Heat
Withstands Temperature Pressure and Vibration
Fits most OEM models
Spark Plugs with Different Electrode Shapes
Spark Plugs with Noble Metal Electrodes
Spark Plugs with Different Appliions
Advanced Test Equipments-Preignition Indior etc.
Advanced Processes- Laser Welding etc.
Perfect Performance of New Products
Easier Starting
Quicker Acceleration
Improved Fuel Economy
Perfect Durability
