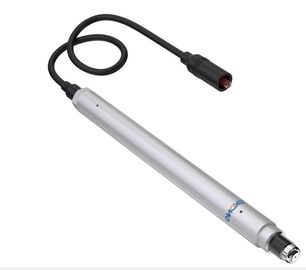

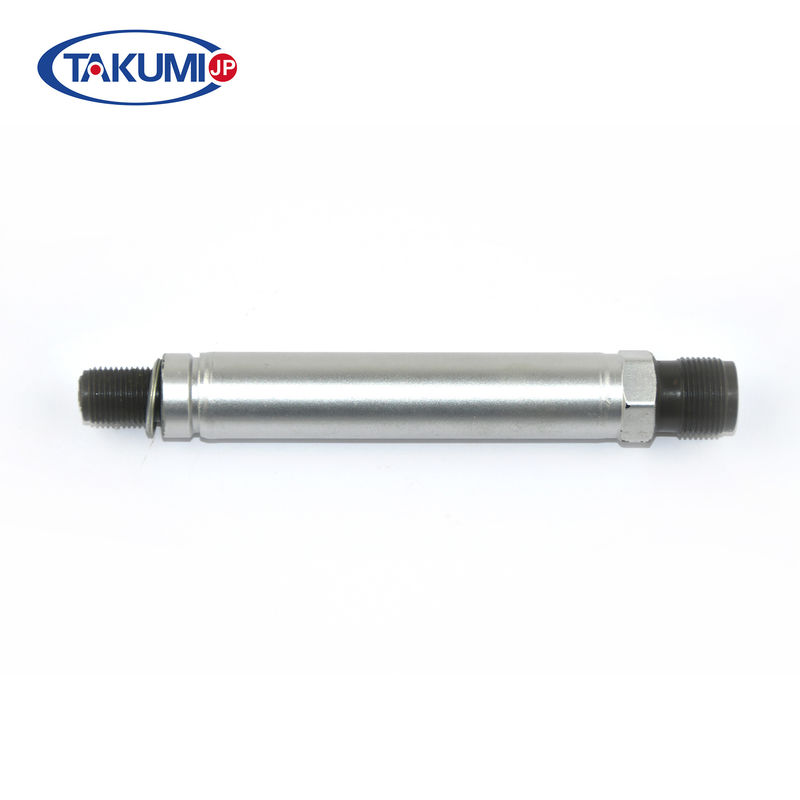

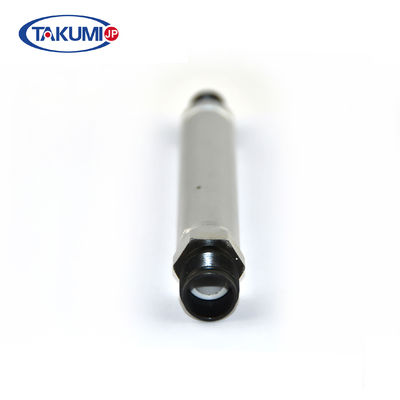

Pre-chamber generator spark plug for 1245-2074 for 2020 engine

Pre-chamber generator spark plug for 1245-2074 for 2020 engine

industrial spark plugs

ignition spark plug

prechamber generator spark plug

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Cable Length:
Shelded Length:
Seat Type:
Payment & Shipping Terms
Minimum Order Quantity
By discussed
Packaging Details
Tin, Plastic box, white box, Carton
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description

Pre-chamber generator spark plug for 1245-2074 for  2020 engine


Our field-proven alternative spark plug S-R6A12forTCG 2020 gas engines is a top seller of onergys product range. This high-quality pre-chamber spark plug is suitably for  TCG gas engines . Long operating hours and a good best price-performance ratio are the benefits of this spark plug. Benefit now from our latest development of the spark plug and secure our price advantage in the member area!


Shielded replace


1245 2074
1230 1641

 1245 3318
 1245 2828
1245 2176
 1245 3572


for  TCG 2020





Model S-R6A12
Thread Size M18x1.5
Reach 26mm
Hex 7/8”(22.2mm)
Seat Type Gasket
Gap 0.3mm
Electrode Type Prechamber
Cable Length 540mm
Shelded Length 278mm
Resistor yes


Pre-chamber generator spark plug for 1245-2074 for 2020 engine 0Pre-chamber generator spark plug for 1245-2074 for 2020 engine 1



  • The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.
  • As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.
  • The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.


Our Factory:

Pre-chamber generator spark plug for 1245-2074 for 2020 engine 2Pre-chamber generator spark plug for 1245-2074 for 2020 engine 3Pre-chamber generator spark plug for 1245-2074 for 2020 engine 4Pre-chamber generator spark plug for 1245-2074 for 2020 engine 5


Why choose us?


1. Over 50 years experiences in auto parts

2. Products under ISO9001, TS 16949 quality system certifiion

3. Good raw material and advanced technology to ensure high quality

4. Diversified products with reliable performance and competitive factory price

5. Strict on quality and 100% inspection

6. Professional technical support and service.

7. OEM accepted, tiral order accepted.


Shipping details:


1. We can ship your item by DHL,FEDEX,UPS,EMS(Express Mail Service),or other shipping ways as your request.

2. We take great care in packaging ensure that every item will shipment to you e.



We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certifiion. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to visit our factory.
