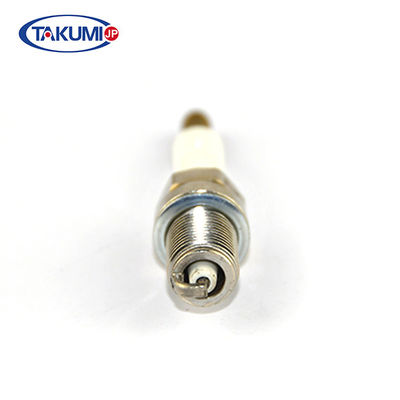

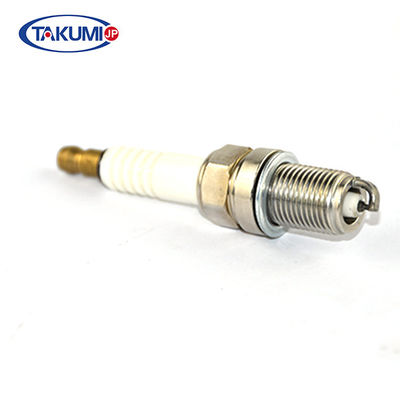

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292

industrial spark plugs

ignition spark plug

Place of Origin:

Hunan,China

Brand Name:

TAKUMI

Model Number:

R5B12-77

Contact Us

Request A Quote
Product Details
Thread:
M18x1.5
Reach:
20.6mm (13/16”)
Hex:
7/8”(22.2mm)
Gap:
0.3mm
Heat Range:
77
Electrode:
"J" Gap Industrial Electrode
Resistor:
Yes
Model:
R6GC1-77
Fit To:
Denso: GI3-1, GI3-5 Champion: FB77WPCC :243-4291
Payment & Shipping Terms
Minimum Order Quantity
1
Price
By discussed
Packaging Details
Tin, Plastic box, white box, Carton,As cunstomer request
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description



Industrial Spark Plugs for Waukesha 69919D Cummins 4098162 Guascor 7664292



Spark plug data
Type R5B12-77
Thread M18x1.5
Hex 22.2 mm
Seat Type Flat
Gap 0.3 mm
Heat Range 77
Resisitor or Non-Resistor Resistor
Electrode Type J
Cross-References
BOSCH: 7306 (MR3DPP330), 7301

CHAMPION: RB77WPCC /KB77WPCC
WAUKESHA: 60999Z/69919D
CUMMINS: 4090121/4098162/4010981/4302738
GUASCOR: 76.64.291/76.64.293/76.64.292
  289383



Equal life time to the original.
Competively lower price than the original


Features:

Guascor gas engines cover a power range from 242 to 1,308 kWe and provide excellent installation solutions for co- and tri-generation configurations. These configurations represent one of the best ways to reduce your energy costs and your carbon footprint.
Fuel flexibility: Can be designed to handle different gas fuels
Capable of working with variable loads
Robust design to operate under severe conditions
high operational availability
Easy maintenance



Apply for:


  • CUMMINS: Q19G, QSV81-V16, QSV91-V18
  • GUASCOR: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480
  • J612, J616, J620 (1995/9 - BMEP = 16 bar or less)
  •  4000 Series
  • SUPERIOR: 1706G2, 1712G1
  • WARTSILA: W25SG, W28SG, W34SG, W20V, 34SG
  • WAUKESHA:
  • AT Series:
  • 8L-AT25GL / AT27GL (13/16" Reach Heads), 12V-AT25GL / AT27GL (13/16" Reach Heads)
  • VGF Series Inline 6: F18G, F18GL/GLD
  • VGF Series Inline 8: H24G, H24GL/GLD
  • VGF Series V-12: L36GL/GLD
  • VGF Series V-16: P48GL/GLD
  • VHP Series Inline 6: 2895GL (13/16" Reach Heads), 3521GL (13/16" Reach Heads)
  • VHP Series V-12: L5108GL (13/16" Reach Heads), L5790GL (13/16" Reach Heads), L7042GL (13/16" Reach Heads)
  • VHP Series V-16: P5115GL, P9390GL (13/16" Reach Heads)
  • CHP Gas Engine
  • Cogeneration Plants
  • Power Plants
  • Power House
  • Cogeneration generator

 Details:

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292 0


ALTERNATOR
Voltage V 400 rated
Speed rpm 1500
Frequency Hz 50
Bearings   2
Voltage accuracy % ± 1.5
Isolation class   H
Heating class   F
Excitation   Electronically controlled
Protection level   IP23
Accuracy of voltage % ± 1.5
Between phases:   2
Between phases and neutral: s 1
Service type   Continuous 24/24h
Ambient temperature ºC < 40
Altitude m < 1000





Reference Appliions
ARGILORE (Hondarribia, Spain)
Fuel Engine type Electrical output Thermal output Commissioning
Natural gas 3 x FGLD 360 1.6 MW 2.6 MW 2009 / 2010
Installation of a cogeneration plant for greenhouse and plant nursery.CO 2 Output ~600kg/h

WWTP ARROYO CULEBRO (Madrid, Spain)
Fuel Engine type Electrical output Thermal output Commissioning
Sewage gas 2 x FGLD 480 4.5 MW   2005 / 2007
3 x SFGLD 560
Water treatment plant

AFRICAN GLASS (Lagos, Nigeria)
Fuel Engine type Electrical output Thermal output Commissioning
Natural gas 2 x SFGLD 560 1890 KW _ 2010
Natural gas 1x SFGLD 360 610 KW
Glass manufacturing & recycling industry.
Exhaust energy for Glass processing.
Hot water for heating.
