TCG 2020 Generator Spark Plug For 1245 3318 1245 2828 1245 2176 1245 3572

Minimum Order Quantity : 1 Price : By discussed
Packaging Details : Tin, Plastic box, white box, Carton Delivery Time : 30 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10000 pieces per month
Place of Origin: Hunan,China Brand Name: TAKUMI
Certification: TS16949 ISO9001 Model Number: S-R6A12

Detail Information

Seat Type: Gasket Electrode: Prechamber
Resistor: Yes Thread: M18x1.5
HEX: 22.2 Mm Seat Type: Flat
Gap: 0.3mm
High Light:

industrial spark plugs

,

ignition spark plug

Product Description



TCG 2020 Generator Spark Plug for  1245-2835 1245 2074  1230 1641

Powertek for Efficiency,durability and reliability

The TCG 2016 is highly efficient thanks to its opti- mized inlet duct, combustion chamber and POWERTEK spark plugs. With its optimized engine components, the TCG 2016 requires up to 50 % less lubricating oil than other similar gensets. Thanks to its smaller dimensions (width x length), the TCG 2016 takes up to 50 % less space than comparable systems. TEM (Total Electronic Management) controls not just the engine but the entire system including the heat supply from cogeneration. The latest technology such as our gas-mixer and TEM allows you to use a wide variety of gases.

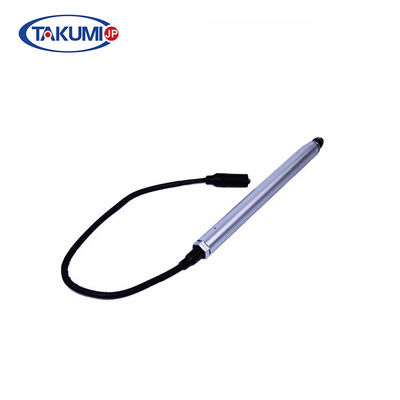

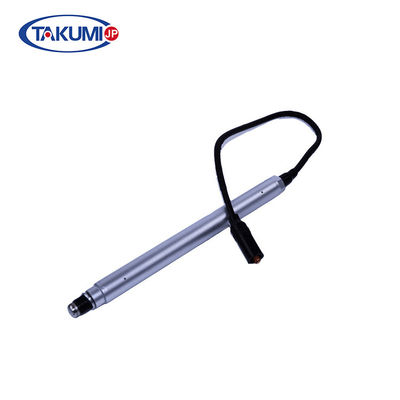

Spark plug data
Type S-R6A12
Thread M18x1.5
Hex 22.2 mm
Seat Type Flat
Gap 0.3 mm
Resisitor or Non-Resistor Resistor
Length of steel tube 283 mm
Line length 308 mm
Cross-References
Deutz: 1245-2828/1245-2835/1245-2074/1245-2176/1245-3318/1245-3572/1245-3388/1230-1641



TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 0TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 1


Technical data

Bore (mm)

170
Stroke (mm) 195
Displacement / cylinder (lit) 4.425
Speed (rpm) 1,500 (50 Hz)
1,500 (60 Hz)
Mean piston speed (m/s) 9.8 (1,500 rpm)

Scope of supply Generator set, cogeneration system,
generator set / cogeneration in container
Applicable gas types Natural gas, flare gas, propane, biogas, land-
fill gas, sewage gas. Special gases (e.g., coal
mine gas, coke gas, wood gas, pyrolysis gas)
Engine type V12 V16 V20
No. of cylinders 12 16 20
Total displacement (lit) 53.1 70.8 88.5





TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 2TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 3TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 4TCG 2020 Generator Spark Plug For 1245 3318 1245 2828  1245 2176  1245 3572 5



We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certification. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to our factory.
