TAKUMI spark plugs are manufactured with a complete quality management system - from incoming material inspection to outgoing 100% spark and seal testing.

Product Overview

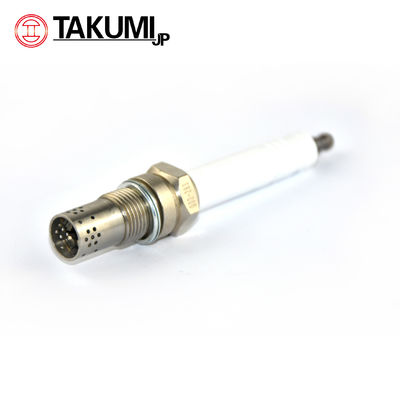

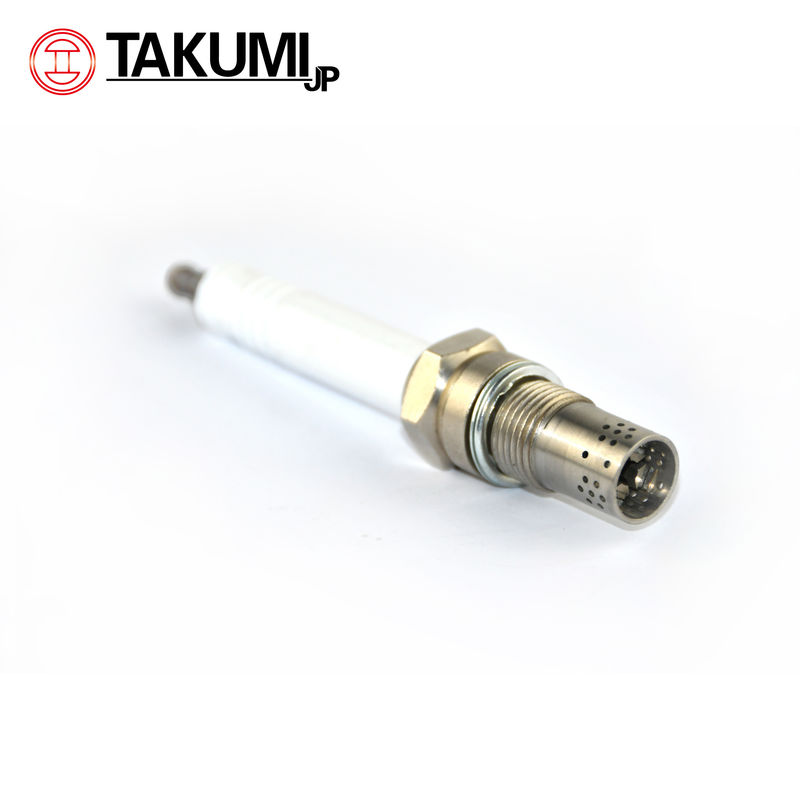

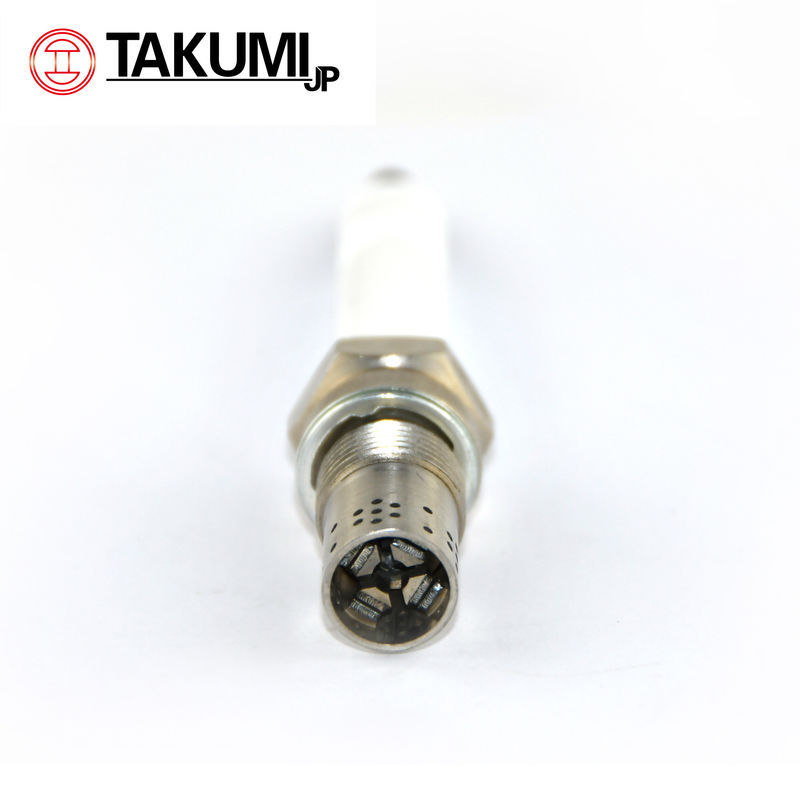

TAKUMI R10P7 spark plug is a form, fit and function equivalent replacement for OEM part 347267. TAKUMI R10P7 spark plug for Jenbacher GS 320 engines, replaces P7.1V5 351000 / P7.1V6 382195.

Every TAKUMI unit is produced in an ISO 9001 and IATF 16949 certified factory, 100% tested before shipment. The plug is engineered for long service life in continuous operation, with a nickel-plated shell, copper-core electrode and high-grade ceramic insulator.

Key Specifications

• TAKUMI TypeR10P7
• Thread SizeM18 x 1.5
• Reach20.6 mm
• Hex Size22.2 mm
• Seat TypeFlat
• Spark Gap0.3 mm
• Heat Range77
• Electrode TypeSpecial design
• ResistorYes

Cross Reference

• Jenbacher / INNIO351000 / 382195 / 347267 / P7.1V3 / P7.1V5 / P7.1V6

Applications

• Jenbacher GS 320 series
• JMS 320 gas engines
• Cogeneration plants

Advantages

• Drop-in replacement - no engine parameter changes required
• Reliable ignition under high pressure and lean combustion
• Anti-corrosion nickel-plated housing
• 95% alumina insulator for heat and shock resistance
• Monolithic resistor for stable conductivity
• Factory direct with competitive pricing and short lead time

OE numbers are for reference only. Final fitment should be confirmed before ordering.

Factory & Quality Control

Each unit is 100% tested for spark performance and gas tightness. Random samples from every batch also undergo dimension and material verification.

Production Workshop

TAKUMI runs a fully integrated manufacturing base: CNC machining, automated assembly and 100% functional testing under one roof.

From raw material to finished spark plug, every process is controlled in-house with ISO-certified procedures.
