We are not a trading company. TAKUMI owns the production line, which is why we can offer consistent quality, competitive pricing and reliable delivery.

Product Overview

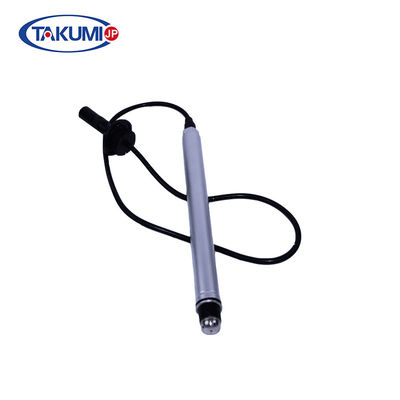

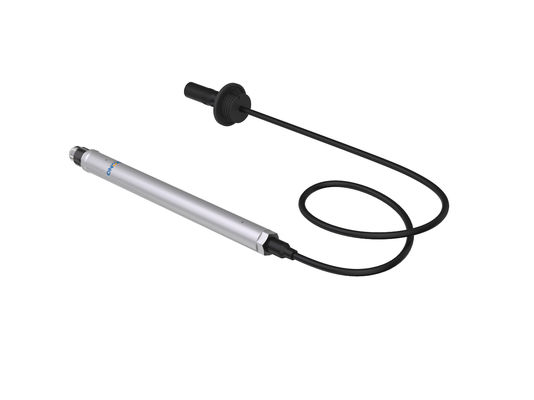

TAKUMI S-R6A13 spark plug is a form, fit and function equivalent replacement for OEM part 12285295. TAKUMI S-R6A13 is a shielded prechamber spark plug for MWM TCG 2032 gas engines. M22x1.5 flat seat, 30 mm reach, 965 mm shielded cable, 0.3 mm gap, integrated resistor.

Every TAKUMI unit is produced in an ISO 9001 and IATF 16949 certified factory, 100% tested before shipment. The plug is engineered for long service life in continuous operation, with a nickel-plated shell, copper-core electrode and high-grade ceramic insulator.

Shielded replacement for DEUTZ 1228-2839 family on TCG 2032.

Key Specifications

• TAKUMI TypeS-R6A13
• Thread SizeM22 x 1.5
• Reach30 mm
• Hex Size22.2 mm (7/8")
• Seat TypeFlat
• Spark Gap0.3 mm
• Electrode TypePrechamber (shielded)
• Cable Length965 mm
• Shield Length276 mm
• ResistorYes

Cross Reference

• DEUTZ1228-2839 / 1228-4236 / 1228-2365 / 1228-4432 / 1228-5126 / 1228-5295 / 1228-5296
• MWM1245-3558 / 1245-3574

Applications

• MWM TCG 2032 V16 / V20
• CAT CG 260 series
• Biogas, natural gas and landfill gas power stations

Advantages

• Drop-in replacement - no engine parameter changes required
• Reliable ignition under high pressure and lean combustion
• Anti-corrosion nickel-plated housing
• 95% alumina insulator for heat and shock resistance
• Monolithic resistor for stable conductivity
• Factory direct with competitive pricing and short lead time

OE numbers are for reference only. Final fitment should be confirmed before ordering.

Factory & Quality Control

Our QC team records batch numbers for full traceability. Should any issue arise, we can quickly isolate the production batch and respond within 48 hours.

Application

This spark plug series is widely applied in CHP plants, biogas stations and distributed power generation, where stable ignition directly affects engine availability.

Production Workshop

TAKUMI runs a fully integrated manufacturing base: CNC machining, automated assembly and 100% functional testing under one roof.

From raw material to finished spark plug, every process is controlled in-house with ISO-certified procedures.
