TS16949 Approved Iridium Spark Plug Equivalent 346-5123 346 5123

Minimum Order Quantity : 4 Price : By discussed
Packaging Details : Tin, Plastic box, white box, Carton Delivery Time : 30 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10000 pieces per month
Place of Origin: Hunan,China Brand Name: TAKUMI
Certification: TS16949 ISO9001 Model Number: R6GC1-77

Detail Information

Thread Size: OEM Standard Size Material: Iridium
Quality: OEM Equivalent Product Name: 346 5123 CAT Spark Plug Equivalent
Oe No.: 346 5123 CAT 284-8313, CAT 199-9012, Application: G3500B And G3500C
High Light:

TS16949 Iridium Spark Plug

,

346-5123 Iridium Spark Plug

,

346 5123 Spark Plug

Product Description

Spark Plug, Caterpillar 346-5123/346 5123



Generator Set Model: natural gas genset, landfill gas genset, biogas genset,marsh gas genset, biomass gas generator sets.





specification:

Specification
Model R6GC1-77
Thread Size M18x1.5
Reach 21mm
Hex 20.6mm (13/16”)
Seat Type Gasket
Gap 0.3mm
Heat Range 77
Electrode Type Prechamber
Resistor yes

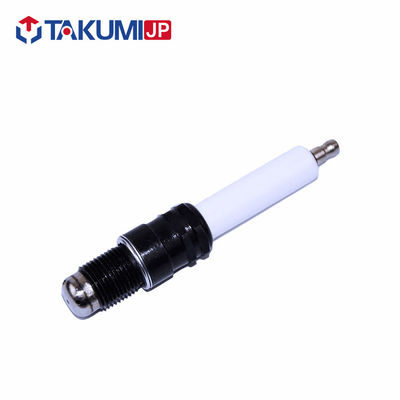

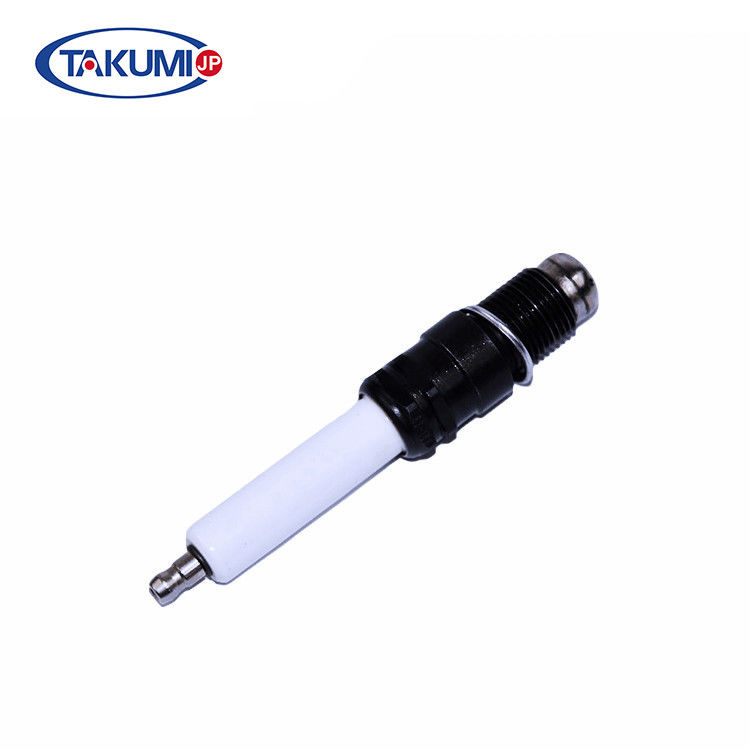

Product Image:



TS16949 Approved Iridium Spark Plug Equivalent 346-5123 346 5123 0TS16949 Approved Iridium Spark Plug Equivalent 346-5123 346 5123 1







Cross reference:



  • CAT: 346-5123; 3465123; 284-8313; 2848313;
    BERU: 18 VGZ 1-77
  • CAT 284-8313, CAT 199-9012,



Apply for:



  • Application: G3500B and G3500C
  • Electrode Gap Setting: Refer to Operation Maintenance Manual for your engine

Application: G3500B and G3500C

Engine - Generator Set
G3516C, G3520C, G3516B, G3516E, G3520E, PMG3516, G3512E

Engine - Industrial
G3516C, G3516E, G3512E

Marine Products
G3512E

Operation:

  • The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.
  • As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.
  • The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.

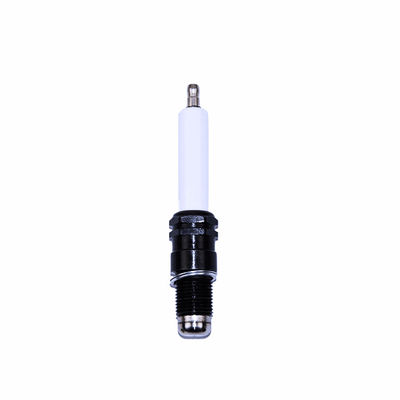

Our Factory:

TS16949 Approved Iridium Spark Plug Equivalent 346-5123 346 5123 2TS16949 Approved Iridium Spark Plug Equivalent 346-5123 346 5123 3



Why choose us?



1. Over 50 years experiences in auto parts

2. Products under ISO9001, TS 16949 quality system certification

3. Good raw material and advanced technology to ensure high quality

4. Diversified products with reliable performance and competitive factory price

5. Strict on quality and 100% inspection

6. Professional technical support and service.

7. OEM accepted, tiral order accepted.



Shipping details:



1. We can ship your item by DHL,FEDEX,UPS,EMS(Express Mail Service),or other shipping ways as your request.

2. We take great care in packaging ensure that every item will shipment to you safe.





We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certification. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to visit our factory.
