Place of Origin:
China
Brand Name:
TAKUMIJP
Model Number:
S-R6A12
Certifiion:
ITS16949
Contact Us
Company Introduction:

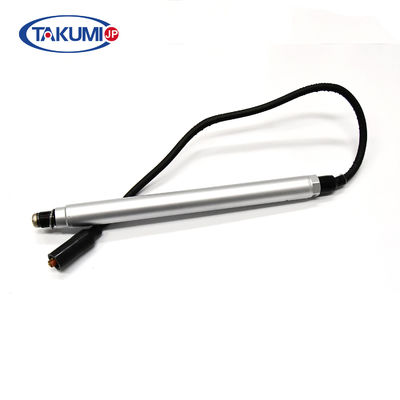

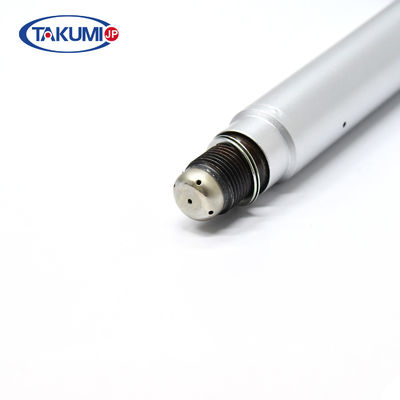

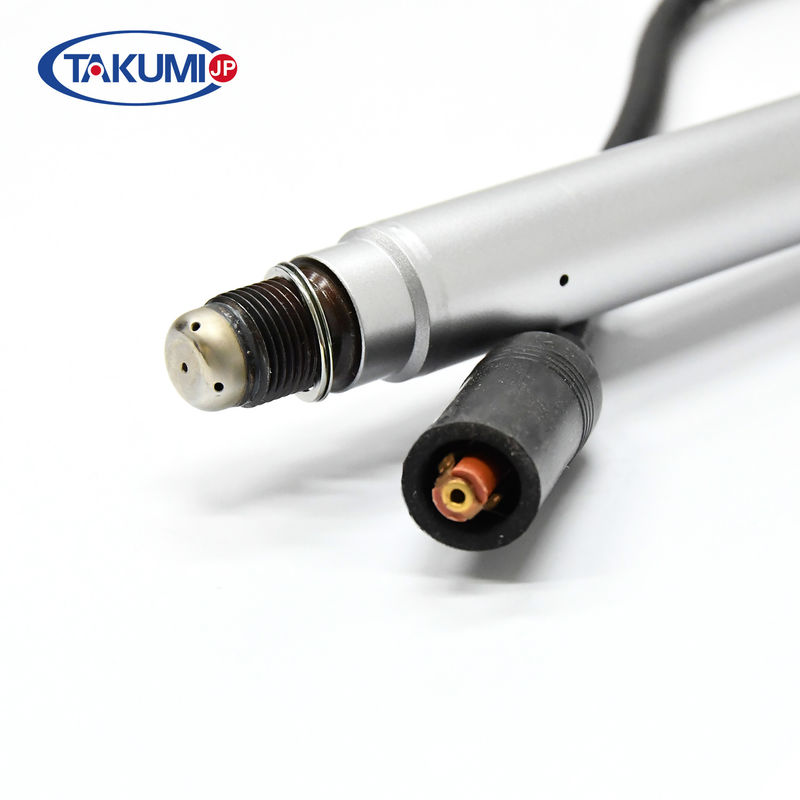

This TAKUMI gas spark plug S-R6A12 for your CHP gas engine TCG 2020 and erpillar CG 170.
| Specifiion | Cross reference | Appliion Engine | |
| Model | S-R6A12 (8 holes) | MWM 1245-2835 MWM 1245 2074 MWM 1230 1641 MWM 1245 3318 MWM 1245 2828 MWM 1245 2176 MWM 1245 3572 (original is 8 holes) |
MWM TCG 2020 CG 170 |
| Thread Size | M18x1.5 | ||
| Reach | 26mm | ||
| Hex | 7/8”(22.2mm) | ||
| Seat Type | Gasket | ||
| Gap | 0.3mm | ||
| Electrode Type | Prechamber | ||
| Cable Length | 540mm | ||
| Shelded Length | 278mm | ||
| Resistor | yes | ||
Old number: 12452176 / 12452828 / 12453318 / 12453388 / 12453572 / 12453556
Suitable for use in the following MWM and erpillar gas engines:
MWM (PN: 12453572):
- TCG 2020 V12
- TCG 2020 V16
- TCG 2020 V20
erpillar / (PN: 12453556):
- CG 170 V12
- CG 170 V16
- CG 170 V20
Cross-References:
MWM:
12452828 / 1245-2828 / 1245 2828
12452176 / 1245-2176 / 1245 2176
12453318 / 1245-3318 / 1245 3318
12453572 / 1245-3572 / 1245 3572
12453388 / 1245-3388 / 1245 3388
/ erpillar:
12453556 / 1245-3556 / 1245 3556
