Place of Origin:
China
Brand Name:
TAKUMIJP
Model Number:
S-R6A12
Certifiion:
ITS16949
Contact Us
Company Introduction:
Punctures in the ceramic casing that insulates the unit, and protects the rest of the engine from the spark plug’s heat, can cause the spark plug to degrade. Damage to other components can occur through misdirected heat dissipation.
A botched installation of a spark plug into a wrenched socket can cause the plug to perform poorly and wear out quickly. The plug has to work harder to transmit and convert the electrical charge into a spark if it’s misaligned, skewed, or tightened incorrectly. Poorly performed installations can end up cracking or denting the plug itself. Awkward or rushed removals can also damage spark plugs, especially when transferring a working plug between engines.
Simply put, spark plugs that are used more often at higher voltages and for longer periods without stopping will wear out faster than expected. If you’re going to be running high-power, high-intensity industrial engines constantly, plan for more frequent spark plug replacements.
Spark plugs and combustion engine interiors both generate large amounts of enclosed, intense heat. Overheating, often caused by poor ventilation and a lack of exhaust dissipation, causes internal damage to metallic spark plugs that can greatly reduce their lifespan. Excess heat also generates a build-up of fractured iron and carbon deposits, increasing resistance.
Make sure your spark plugs are kept as clear of oil and debris as possible. Long-term build-ups of resistant and corrosive fluid can damage the spark plug’s contacts and casing.

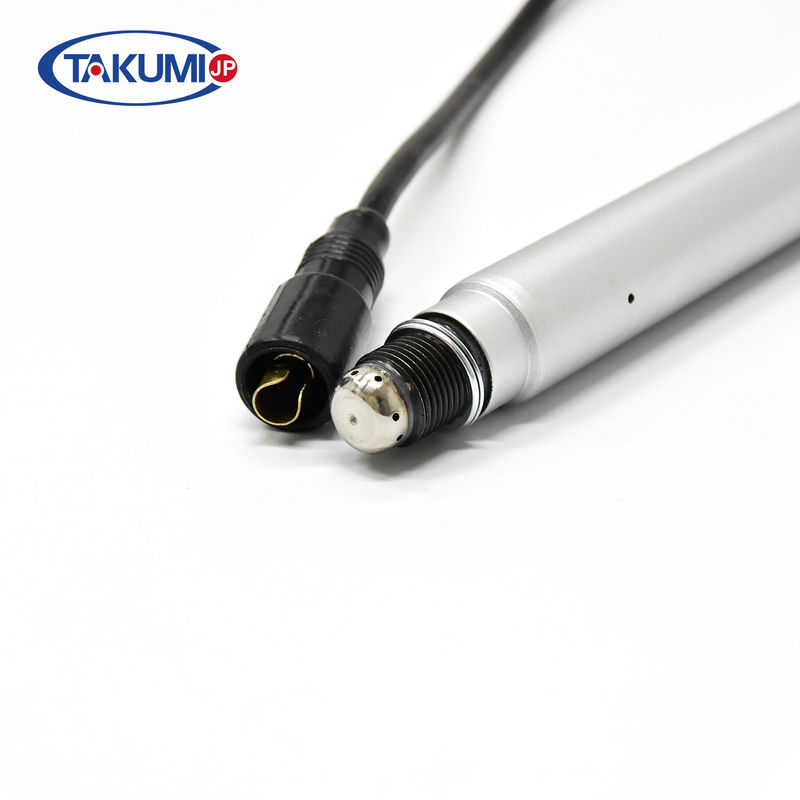

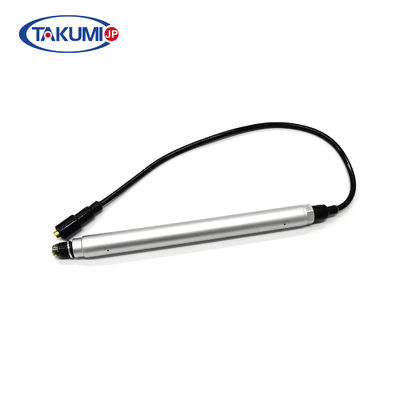

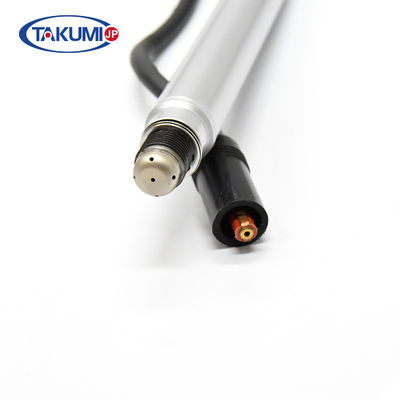

This TAKUMI gas spark plug S-R6A12 for your CHP gas engine TCG 2020 and erpillar CG 170.
| Specifiion | Cross reference | Appliion Engine | |
| Model | S-R6A12 (8 holes) | MWM 1245-2835 MWM 1245 2074 MWM 1230 1641 MWM 1245 3318 MWM 1245 2828 MWM 1245 2176 MWM 1245 3572 (original is 8 holes) |
MWM TCG 2020 CG 170 |
| Thread Size | M18x1.5 | ||
| Reach | 26mm | ||
| Hex | 7/8”(22.2mm) | ||
| Seat Type | Gasket | ||
| Gap | 0.3mm | ||
| Electrode Type | Prechamber | ||
| Cable Length | 540mm | ||
| Shelded Length | 278mm | ||
| Resistor | yes | ||
Old number: 12452176 / 12452828 / 12453318 / 12453388 / 12453572 / 12453556
Suitable for use in the following MWM and erpillar gas engines:
MWM (PN: 12453572):
- TCG 2020 V12
- TCG 2020 V16
- TCG 2020 V20
erpillar / (PN: 12453556):
- CG 170 V12
- CG 170 V16
- CG 170 V20
Cross-References:
MWM:
12452828 / 1245-2828 / 1245 2828
12452176 / 1245-2176 / 1245 2176
12453318 / 1245-3318 / 1245 3318
12453572 / 1245-3572 / 1245 3572
12453388 / 1245-3388 / 1245 3388
/ erpillar:
12453556 / 1245-3556 / 1245 3556
