Product Overview

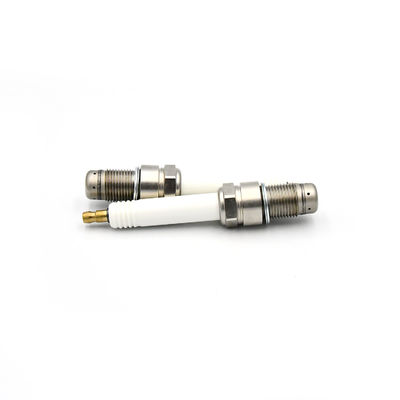

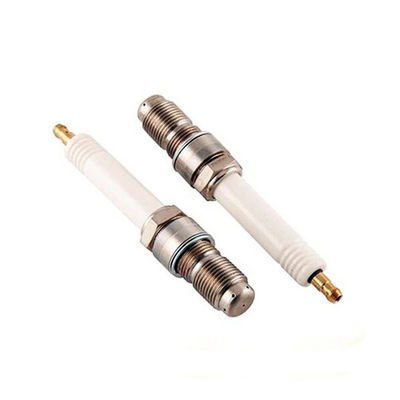

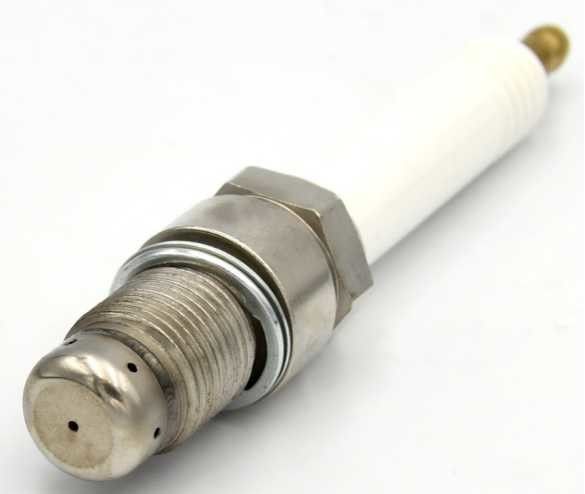

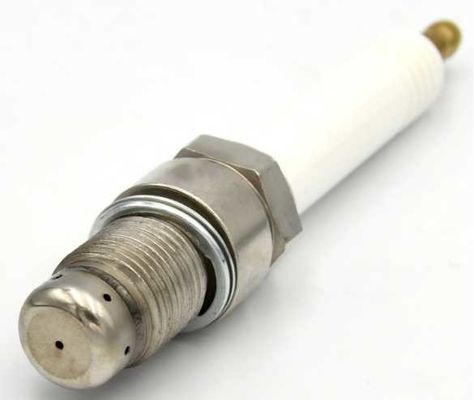

TAKUMI R6GC1-77M spark plug. TAKUMI R6GC1-77M industrial resistor spark plug for MTU 4000 gas engines. M18x1.5 thread, 0.3 mm gap, heat range 77.

Every TAKUMI unit is produced in an ISO 9001 and IATF 16949 certified factory, 100% tested before shipment. The plug is engineered for long service life in continuous operation, with a nickel-plated shell, copper-core electrode and high-grade ceramic insulator.

Key Specifications

• TAKUMI TypeR6GC1-77M
• Thread SizeM18 x 1.5
• Reach20.6 mm (13/16")
• Hex Size22.2 mm (7/8")
• Seat TypeFlat
• Spark Gap0.3 mm
• Heat Range77
• Electrode TypeIridium / Nickel
• ResistorYes

Cross Reference

• MTUX52404500049 / X52404500056 / X52404500062 / X52404500050 / X52404500052 / X52404500027 / X52404500039
• MDE70700180049
• Federal Mogul / BERU0004.800.986.00.07 / 18VGZ1-77
• TennecoFB95WPV / FB95PPV
• MotortechMPC1800 / MPC1900
• C-A-T0346-5123

Applications

• MTU 4000 series (16V4000-L61 / L62 / L63 / L62FB)
• Gas gensets, marine and industrial engines

Advantages

• Drop-in replacement - no engine parameter changes required
• Reliable ignition under high pressure and lean combustion
• Anti-corrosion nickel-plated housing
• 95% alumina insulator for heat and shock resistance
• Monolithic resistor for stable conductivity
• Factory direct with competitive pricing and short lead time

OE numbers are for reference only. Final fitment should be confirmed before ordering.
