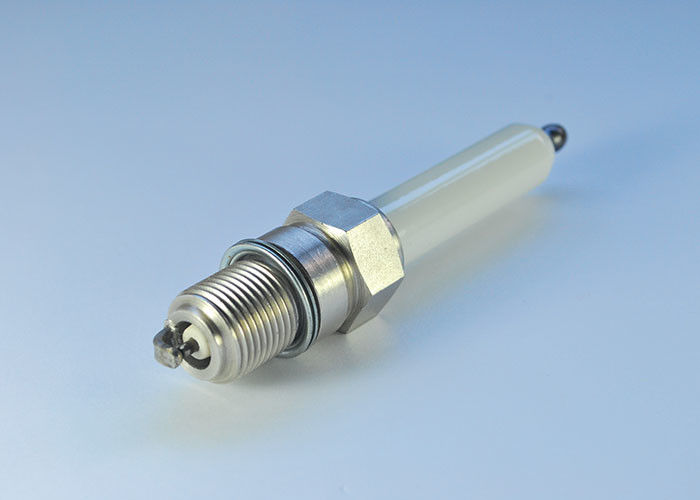

Wartsila Generator Spark Plug , Nickel Plated Copper Spark Plugs 77 Heat Range

Minimum Order Quantity : 20pcs Packaging Details : Tin, Plastic box, white box, Carton
Delivery Time : 30 working days Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 300000 pcs month
Place of Origin: China Brand Name: TAKUMI
Certification: TS16949 ISO9001 Model Number: R5B12-77C

Detail Information

Apply For: Guascor Wartsila Cummins Waukesha Fit For: 243-4291 Champion FB77WPCC Denso GI3-5
Electode: J Type Thread: M18x1.5
Hex: 7/8”(22.2mm) Reach: 20.6mm (13/16”)
Heat Range: 77 Resistor: Yes
Gap: 0.3mm Electrode Materical: Iridium
High Light:

industrial spark plugs

,

ignition spark plug

Product Description



 3516 3600 243-4291 cable Spark Plug WARTSILA WAUKESHA FB77WPCC GI3-1 GI3-5





What is spark plug:



A spark plug is a device used in an internal combustion engine — that is, an engine that derives its power via exploding gases inside a combustion chamber — to ignite the air-fuel mixture.

Cars typically have four-stroke gasoline engines, which means there are four strokes, or movements, to the moving parts inside the engine per rotation. Inside each cylinder is a piston, which moves up and down within the cylinder to compress the gas for combustion, and pushes the exhaust gases out after combustion. The piston is operated by an arm that attaches to the crankshaft, a shaft that extends through the bottom of the engine. The piston goes up and down twice during each rotation, hence the four strokes -- up, down, up, down.

The spark plug is positioned at the top of the cylinder, where the air-fuel ratio is compressed. The tip of the plug sits inside the engine, recessed into the side of the cylinder wall. The other end remains outside the engine and is attached to a wire that is also attached to the distributor.



Specifications:

  1. Deliver maximum performance;
  2. More complete combustion;
  3. Greater power and higher fuel efficiency.





Model R5B12-77C
Thread Size M18x1.5
Reach 20.6mm (13/16”)
Hex 7/8”(22.2mm)
Seat Type Gasket
Gap 0.3mm
Heat Range 77
Electrode Type "J" Gap industrial electrode
Resistor yes
Center Electrode Materical Nickel Copper with Iridium
Ground Electrode Material Nickel with Iridium





Cross reference:



  • Denso: GI3-1, GI3-5
  • Champion: FB77WPCC
  •



Apply for:



  •
  • CUMMINS: Q19G, QSV81-V16, QSV91-V18
  • GUASCOR: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480
  • GE JENBACHER: J612, J616, J620 (1995/9 - BMEP = 16 bar or less)
  • PERKINS: 4000 Series
  • SUPERIOR: 1706G2, 1712G1
  • WARTSILA: W25SG, W28SG, W34SG, W20V, 34SG
  • WAUKESHA:
  • AT Series:
  • 8L-AT25GL / AT27GL (13/16" Reach Heads), 12V-AT25GL / AT27GL (13/16" Reach Heads)
  • VGF Series Inline 6: F18G, F18GL/GLD
  • VGF Series Inline 8: H24G, H24GL/GLD
  • VGF Series V-12: L36GL/GLD
  • VGF Series V-16: P48GL/GLD
  • VHP Series Inline 6: 2895GL (13/16" Reach Heads), 3521GL (13/16" Reach Heads)
  • VHP Series V-12: L5108GL (13/16" Reach Heads), L5790GL (13/16" Reach Heads), L7042GL (13/16" Reach Heads)
  • VHP Series V-16: P5115GL, P9390GL (13/16" Reach Heads)
  • CHP Gas Engine
  • Cogeneration Plants
  • Power Plants
  • Power House
  • Cogeneration generator





Packaging and delivery:

  1. 4PCS in a Tin, in yellow plastic box, in white box.
  2. By DHL express, by air or according customers' request.

Wartsila Generator Spark Plug  , Nickel Plated Copper Spark Plugs 77 Heat Range 0
