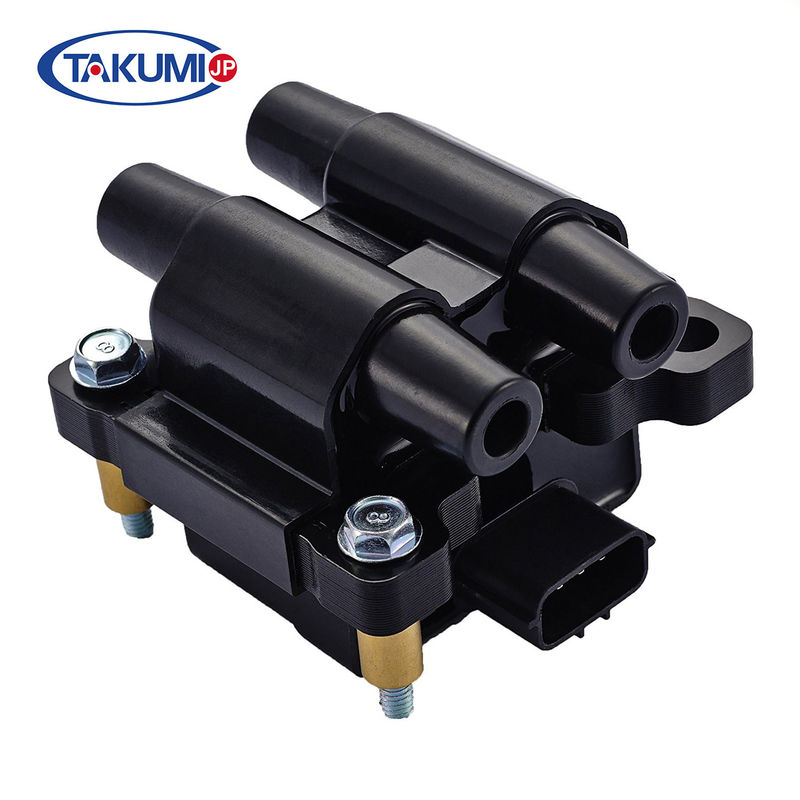

Auto Ignition coil 0489051051 6000581617 for Peugeot

About Ignition Coil

An ignition coil (also called a spark coil) is an induction coil in an automobile's ignition system which transforms the battery's low voltage to the thousands of volts needed to create an electric spark in the spark plugs to ignite the fuel. Some coils have an internal resistor while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the car's 12 volt supply. The core components of ignition system is ignition coil and switch device.
Ignition coil in accordance with the magnetic type magnetic circuit is divided into open and closed magnetic type. Traditional ignition coil with magnet, with its core in silicon steel sheet pile into around 0.3 mm, core around with secondary and primary coil.Closed magnetic type, the use of the shape of Ⅲ core around the primary coil, and then around the secondary coil, the magnetic field lines composed closed magnetic circuit core.Closed magnetic type ignition coil has the advantage of low magnetic leakage, small power loss, small size, so the electronic ignition system widely used magnetic closed type ignition coil.

Advantage

1, the product of the secondary skeleton using imported raw materials PPO, with a high degree of resistance to voltage, flame retardant, to withstand 200 ° high temperature.

2, copper wire with imported materials, with low resistivity, to prevent electrical breakdown of the insulating paint, and a high degree of adhesion of epoxy resin.

3, silicon steel sheet using China's largest manufacturer of steel production of high content of silicon, with a good amount of magnetic permeability, high conversion rate, long magnetic retention time.

4, ignition coil boots with high quality Dingqing rubber, with anti-interference, high temperature (220 ° deformation), anti-voltage.

Production Process

Raw materials - processing - high-speed winding copper - automatic solder - assembly -100% detection - preheating - potting epoxy - open test - testing - reassembly -100% test - packaging - shipping.

FAQ (Fluently Asked Questions)

Q1. If we don't find the model type here, Please tell us.
1, Please send us your OEM number.
2, Please send us your photo and products size if you have.
3, Please tell us your exact car model if you do not have photo or OEM number.

Q2. Can you produce according to the samples?
1, Yes,we can offer a sample,also for some items,the sample is free,for others,not. It depends.Please feel free to contact us for more information about the sample.
And buyers should pay for the shipping fee.

Q3. Do you test all your goods before delivery?
1, Yes, we have 100% test before delivery.

Q4. How to contract us?
1, If you need more information, please contact us freely,Please sending us your inquiry to our e-mail.
2, If you have urgent things to contact me, please call my phone.
3, Of course you can also use chat software.
