auto bearing water pump bearing from china WPB2040091

Auto bearing water pump bearing from china WPB2040091

WIB2036112 WPB2040091

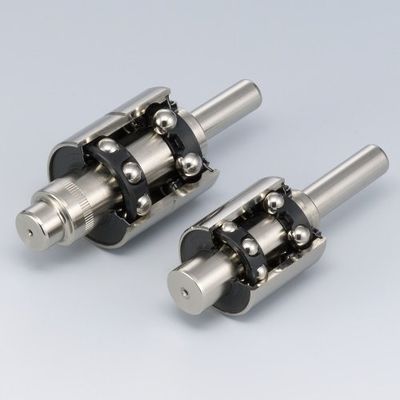

Water Pump Bearings are double row bearings and, in contrast to conventional double row bearings, do not have an inner ring but raceways machined directly into the surface of the shaft. As a result, there is more space available for the rolling elements, giving a higher specific load carrying capacity than that of solutions with conventional single bearings. Furthermore, it is possible in this type of bearing to achieve economical combinations of ball and roller rows. In a small design envelope, this gives a broad range of load carrying capacities.

The use of a common outer ring for two rows of rolling elements prevents misalignment defects, eliminating the risk of undesirable distortion of the bearings.In water pump bearings, the ends of the shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections are matched to the specific appliion. This results in a simple, ready-to-fit bearing unit that is primarily used in water pumps for road vehicles.However, they are not restricted to this appliion. Due to the advantages described above, they have a wide range of possible appliions.

Appliion

Water Pump Bearings are mainly used in the automotive cooling pumps, in which the bearing unites replace the original two sets of single axial bearings. The product series includes two types: one is two rows of balls, and the other is one row of ball, one row of roller, which mainly endures radial load. The small loading bearing adopts the two rows of balls, and the product with large loading chooses the structure of one row of ball,

They can be used, for example, in:fans tension pulleys vane pumps angle grinders. Since they are not restricted to use in water pumps, water pump bearings are also described in English as Integral shaft bearings.

Product Information:
