Place of Origin:
China
Brand Name:
TAKUMI
Model Number:
Q6RTIP
Contact Us

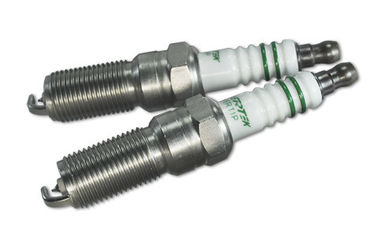

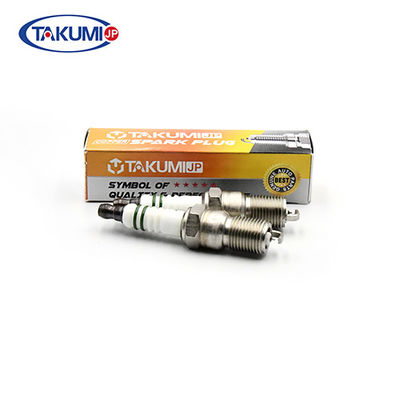

Laser Iridium Long-Life Auto Spark Plugs Set of 4 Pre-Gapped Match For NGK ILTR6A13G 7658
A spark plug is a device used in an internal combustion engine — that is, an engine that derives its power via exploding gases inside a combustion chamber — to ignite the air-fuel mixture.
Cars typically have four-stroke gasoline engines, which means there are four strokes, or movements, to the moving parts inside the engine per rotation. Inside each cylinder is a piston, which moves up and down within the cylinder to compress the gas for combustion, and pushes the exhaust gases out after combustion. The piston is operated by an arm that attaches to the crankshaft, a shaft that extends through the bottom of the engine. The piston goes up and down twice during each rotation, hence the four strokes -- up, down, up, down.
The spark plug is positioned at the top of the cylinder, where the air-fuel ratio is compressed. The tip of the plug sits inside the engine, recessed into the side of the cylinder wall. The other end remains outside the engine and is attached to a wire that is also attached to the distributor.
| TAKUMI Type | Q6RTIP |
| Thread | M14x1.25 |
| Reach | 17.5mm |
| Hex | 16mm |
| Seat Type | Flat |
| Gap | 0.8mm |
| Heat Range | 6 |
| Electrode Type | J Type |
| Resistor or Non-Resistor | Resistor |
| Electrode Enhancements | Platinum Iridium electrode |
Cross reference:
TAKUMI QH6RTIP match for NGK ILTR6A13G
TAKUMI QH6RTIP match for NGK PLTR6A10G
TAKUMI QH6RTIP match for Denso ITV20
TAKUMI QH6RTIP match for Mazda 0000 18 L3Y1
TAKUMI QH6RTIP match for Mazda L3Y1 18 110
TAKUMI QH6RTIP match for Mazda L3G2 18 110
1.Iridium power best demonstrates its performance improvement during acceleration
2.Iridium center electrode and a specially shaped ground electrode.
3.High-response driving with fewer misfires than under higher required voltage spark conditions,
and fewer misfires when ignitability is difficult.
4.Outstanding acceleration, high fuel efficiency and durability.
5.Corrugated Ribs Prevent Flashover.
Features of Platinum and Iridium spark plug
Packing:
1) 1pc in a small box, 10pcs in a middle box, 200pcs in an export carton;
2) 4pcs in a blister packing, 200pcs in an export carton;
3) 100pcs in a polyfoam box, 200pcs in an export carton;
4) 9600pcs spark plugs/pallet;
5) As customer's requirements.
