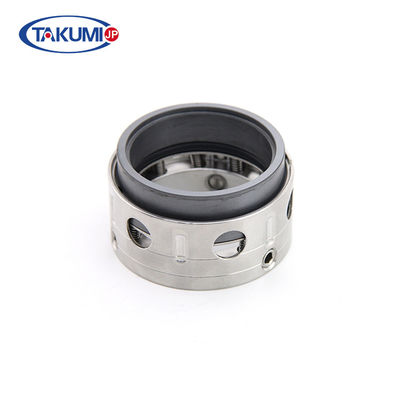

Anti Corrosion Water Pump Mechanical Seal For Centrifugal Pump
Product Details
Anti Corrosion Water Pump Mechanical Seal
,Anti Corrosion Centrifugal Pump Mechanical Seal
mechanical seal on pump for boiler feed water pump mechanical seal mechanical seal for centrifugal pump
| Product name |
High Standard 168 Gasoline Engine Seal Automotive FB Seal Accessories Car for Water Pump Coolant F-12 Yarman |
| Size | Standard |
| Fit for | car parts/generator engine |
| Car Make | Customizable |
| Place of Origin | Hunan,China(Mainland) |
| Brand Name | TAKUMI |
| Materials | Customizable |
| Warranty | 12 Months |
| Quality |
100%tested |
| Design Structure: | Operating limits: |
| 1. Dependent on the direction of rotation | 1. Pressure:6bar |
| 2. Single face | 2. Temperature-30-200°C |
| 3. Unbalanced | 3. Speed: ≤15m/s |
| 4. Rubber bellows | 4. Shaft size:10~25.4mm |
| 5.Sealing face:Silicon carbide,Carbon,TC | |
| 6.Secondary Sealing:FKM,NBR,PTFE,EPDM | |
| 7.Mental component:316L, 304 |
Supplier Burgmann MG1 rubber bellow Mechanical Seal for water pump
1. Sealcon R21 is for Burgmann MG1
2. Our seals can replace the original seals. we strictly follow DIN24960,ISO3069, EN12756,API628 standards.
3.If it is not the one you need ,you can pass us your pump model or your drawing ,material,shaft size for quotation.
we can make whatever mechanical seal you need .
4.Customized products and OEM is welcomed
5. We offer Factory Price,High Quality ,Fast Delivery and Best Sevice.
The characteristics of graphite material
1. Good lubricity
2. Good thermal conductivity
3. Good corrosion resistance
4. High oxidation resistance
5. Greater resistance to thermal and mechanical shock
6. High mechanical strength and machining accuracy
7. Hard surface and good flexural strength
Resin impregnated carbon graphite, increase the strength and wear resistance, decrease the material porosity.
Metal impregnated carbon graphite, increase the density, high temperature resistance.
Our Metal or Resin Impregnated Graphite Parts are widely used in equipments of modern industry, such as seal rings for centrifugal pumps reacting kettle for chemical engineering, hydraulic generators and rotate baking furnaces; piston rings and bushings for compressors oxygen machines and bellows, bearings for screen motors and other types of instruments; slides for motors, subways and mine brushes of electrical machinery and slides for trolleybuses, etc.
-
