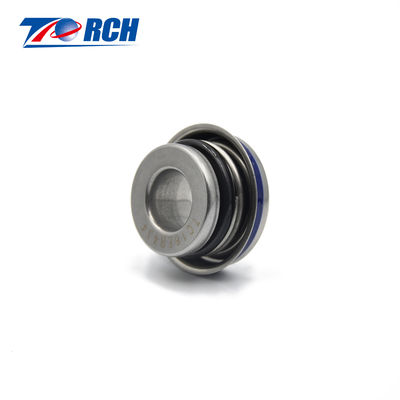

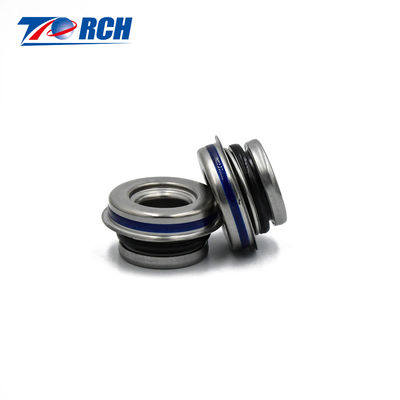

Hard Carbon Water Pump Mechanical Seal C16 For Track Coolant

Hard Carbon Water Pump Mechanical Seal C16 For Track Coolant

Hard Carbon Water Pump Mechanical Seal

Water Pump Mechanical Seal C16

Track Coolant Water Pump Mechanical Seal

Place of Origin:


Brand Name:


Model Number:



IATF 16949 , ISO 14001 , ISO 9001

Contact Us

Request A Quote
Product Details
Customizable OEM Water Pump Seal
Car Water Pump
Standard Or Nonstandard:
Mechanical Seal
Payment & Shipping Terms
Minimum Order Quantity
Product Description

Hard Carbon Ring Mechanical Seals C16 for Automotive Water Pump for Track Coolant



Product name

High Standard 168 Gasoline Engine Seal Automotive FB Seal Accessories Car for Water Pump Coolant F-12 Yarman

Size Standard
Fit for Track car parts/generator engine
Car Make Customizable
Place of Origin Hunan,China(Mainland)
Brand Name TORCH
Materials Customizable
Warranty 12 Months

High quality OEM,100%tested



Design Structure: Operating limits:
1. Dependent on the direction of rotation 1. Pressure:6bar
2. Single face 2. Temperature-30-200°C
3. Unbalanced 3. Speed: ≤15m/s
4. Rubber bellows 4. Shaft size:16mm
  5.Sealing face:Silicon carbide,Carbon,TC
  6.Secondary Sealing:HNBR,NBR
  7.Mental component:316L, 304





Supplier TORCH rubber bellow Mechanical Seal for water pump


Automobile Seals mainly produces car water pump mechanical seals and special ceramics (Alumina products, Silicon Carbide products, air conditioning compressor terminals). Annual production capacity of automobile Seals is 20 million sets.Having passed IS09001 and IATF16949 , Automobile Seals is consistently improving based on its powerful quality assurance capacity.



Hard Carbon Water Pump Mechanical Seal C16 For Track Coolant 0Hard Carbon Water Pump Mechanical Seal C16 For Track Coolant 1



Superior Raw Materials:


All the raw materials shall be stored only after the serious inspection and corresponding inspection report.




Customized mechanical seals can be manufactured according to your samples or drawings




Strict QC system to control product quality during whole production.


Regular inspection shall be conducted on those semi-finished products in the process of producing so as to ensure the scientificness of our technique and the controllability of the inferior products.




100% quality control before shipment


Quality Management:


The professional Quality Management is the guarantee of your satisfaction for the appearance and specifiion of our products.




The selection of material configuration:


Component Name  Materical Options
Spring Seats
Staionnary Ring Hot Pressed Resin Carbon
Sintered Impregnated Carbon
Hard Carbon
Slicon Carbide Composite
Rotary Ring Alumina Ceramics
Silicon Carbide
Slicon Carbide Composite
Spring SUS304,SUS316,SUS,1Cr18Ni9,0Cr18Ni9
Carbon Stell Wire(Group C)
Cup Ring
Rubber Material  Temperature
NBR - 35 ~ 110
HNBR - 50 ~ 150

FAQ (Fluently Asked Questions)


Q:Are you trading company or factory ?

A:We are a factory ,so we can offer you Factory Price with High Quality.

Q:Where is your factory loed ?

A:Our factorty is loed in Jiande, Hangzhou which is close to Shanghai and Ningbo Port.

Q:How long is your delivery?

A:For stock items ,we can ship them immediately after receiving payment .

For other items,we will need 14-25 days for mass production depends on the quantity and types of the order.

Q:Do you provide free samples ?

A:Usually we do not provide free samples .There is a sample cost which can be refund after you place order .

Q:What do you usually shipped through?

A:Air freight, Sea freight,express is the widely used shipment due to small weight and size for Mechanical seal

Q:What’s your payment terms ?


A:We accept T/T, Paypal, Western Union when qualified goods are ready for ship.

Also pay to Alibaba via Credit Card is welcomed.

For amount less than 1000USD ,100% in advance.

For amount more than 1000USD,30% in advance ,balance payment before shipment

Q:I can not find our products in your alog ,can you make customized products for us ?

A:Yes ,Customized products is available .OEM is welcomed.

Q:I don’t have drawing or picture available for custom products, could you design it?

A: Yes,we can make the best suitable design in accordance with your appliion.
