R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

Product Details:
Place of Origin: China
Brand Name: Torch
Model Number: R5B12-77
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $41/piece
Delivery Time: in 15 days
Payment Terms: T/T
Supply Ability: 1000pcs per month

Detail Information

Thread: M18*1.5 Reach: 20.6mm
Hex: 22.2mm Seat Type: Gasket
Gap: 0.3mm Heat Range: 77
Electrode Type: Double "J" Gap Iridium Electrode Resistor Or None-resistor: Resistor
High Light:



R5B12-77 Replacement


Torch Spark Plug Replacement

Product Description

Torch Industrial Spark Plug R5B12-77 match for jenhach-er Engines


1. Product Details:

Torch Type R5B12-77
Thread M18*1.5
Reach 20.6mm
Hex 22.2mm
Seat Type Gasket
Gap 0.3mm
Heat Range 77
Electrode Type Double "J" Gap Iridium E;ectrode
Resistor or None-resistor Resistor

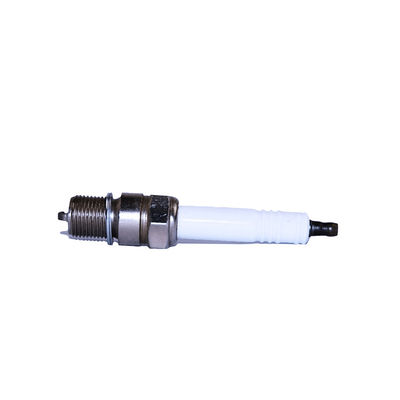

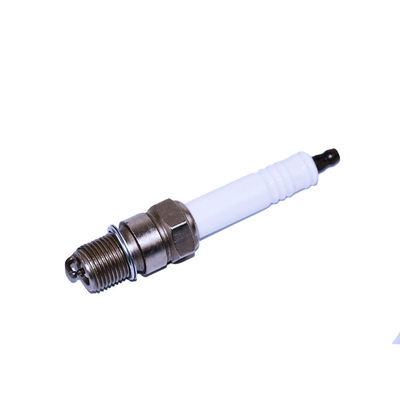

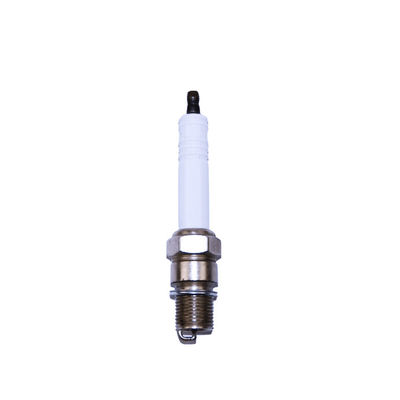

2. Photo show:

R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type 0R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type 1R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type 2R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type 3

3. About the Spark Plug:

This spark plug is specially designed and produced for Champion, Bosch, Denso and other generator sets. The electrode material is double iridium precious metal. The raw materials of precious metals can enhance the corrosion resistance of the spark plug and can greatly extend the service life of the spark plug. High cost performance, suitable for all kinds of gas generator sets.

This industrial can used in most common in jenbach-er engines, cat G3500 series and G3600 series, cummin-s Q19G and QSV, jenbach-er 612 12-Cyl. After 9/95 and J616 16-Cyl. After 9/95,  perki-ns 4000 series, superi-or 1706G2 and 1712G1, etc.


4. About Our Company:

Our factory has been manufacturing spark plug for more than 58 years, we have ranked China No.1 and world No.3. Besides spark plug we also have ignition coil and cable, all types of filters, mechanical seals, and brake pad.


5. Leave Message:

If your are interested in this product or the other products which fall in our product line, please send me a message or write an email to me ( jessica@torchgroup.cn) at any time.
