Welcome to TAKUMI JAPAN AUTO PARTS CO.,LTD.

OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

Basic Properties
Place of Origin: China
Brand Name: Torch
Model Number: R5B12-77
Trading Properties
Minimum Order Quantity: 1
Price: $40/piece-$45/piece
Delivery Time: in 15 days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Product Summary
OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type 1. Product Details: Torch Type R5B12-77 Thread M18*1.5 Reach 20.6mm Hex 22.2mm Seat Type Gasket Gap 0.3mm Heat Range 77 Electrode Type Double "J" Gap Iridium E;ectrode Resistor or None-resistor Resistor 2. ...

Product Details

Highlight:

ERPILLAR R5B12-77 spark plug replacement

,

OE standard torch spark plug

,

gasket seat type spark plug

Thread: M18*1.5
Reach: 20.6mm
Hex: 22.2mm
Seat Type: Gasket
Gap: 0.3mm
Heat Range: 77
Electrode Type: Double "J" Gap Iridium Electrode
Resistor Or None-Resistor: Resistor
Product Description

OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

1. Product Details:

Torch Type R5B12-77
Thread M18*1.5
Reach 20.6mm
Hex 22.2mm
Seat Type Gasket
Gap 0.3mm
Heat Range 77
Electrode Type Double "J" Gap Iridium E;ectrode
Resistor or None-resistor Resistor

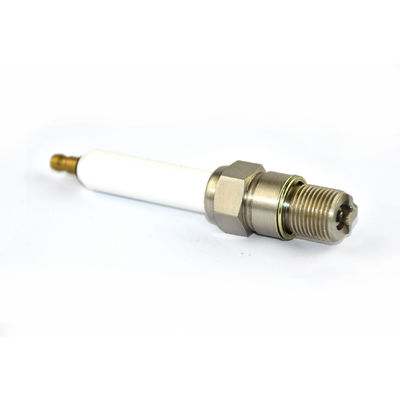

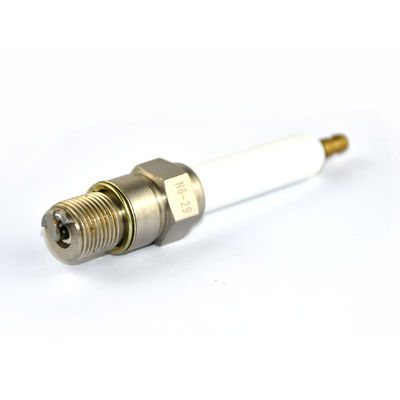

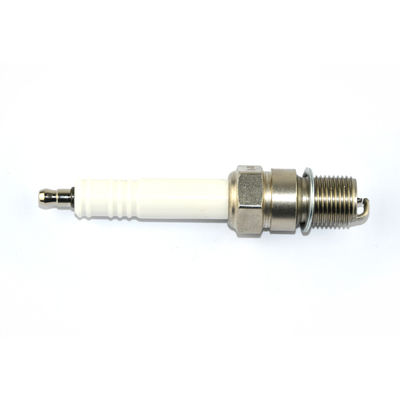

2. Photo show:

OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat TypeOE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

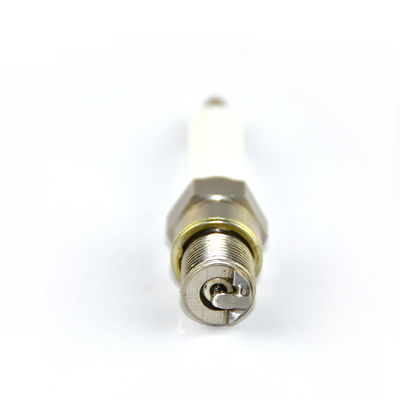

From this photo, you can see the details of the electrode part of this spark plug.

OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type

3. About the Spark Plug:

This spark plug is specially designed to matck for ERPILLAR, and it vcan also replace Champion (RB77WPCC), Bosch (7301, 7306), Denso (g13-1A, G13-3A, B13-5A) and other generator sets. The electrode material is double iridium precious metal. The raw materials of precious metals can enhance the corrosion resistance of the spark plug and can greatly extend the service life of the spark plug. High cost performance, suitable for all kinds of gas generator sets.

This industrial can used in most common in jenbach-er engines, G3500 series and G3600 series, cummin-s Q19G and QSV, jenbach-er 612 12-Cyl. After 9/95 and J616 16-Cyl. After 9/95,  perki-ns 4000 series, superi-or 1706G2 and 1712G1, etc.



Notes: We can provide samples for you to test. However, in order to test the quality of this spark plug better and more comprehensively, it is recommended that you buy a set of spark plugs for testing at a time.



4. About Our Company:

Our factory has been manufacturing spark plug for more than 58 years, we have ranked China No.1 and world No.3. Besides spark plug we also have ignition coil and cable, all types of filters, mechanical seals, and brake pad.



5. Leave Message:

If your are interested in this product or the other products which fall in our product line, please send me a message or write an email to me ( jessica@torchgroup.cn) at any time.
