Place of Origin:
China
Brand Name:
Torch
Model Number:
R3K15-78
Contact Us
Video
OE Standard Quality of ERPILLAR R5B12-77 Torch Spark Plug Replacement With Gasket Seat Type
1. Product Details:
| Torch Type | R3K15-78 |
| Thread | M14x1.5 |
| Reach | 19mm |
| Hex | 16 mm |
| Seat Type | Flat |
| Gap | 0.38 mm |
| Heat Range | 78 |
| Electrode Type | Projected Double Platinum j "Gap" |
| Resistor or None-resistor | Resistor |
2. Photo show:

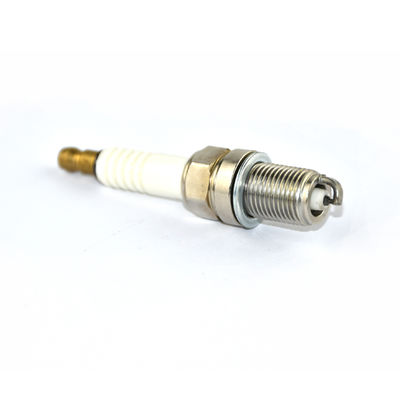

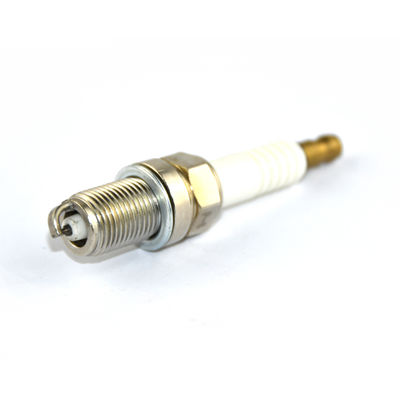

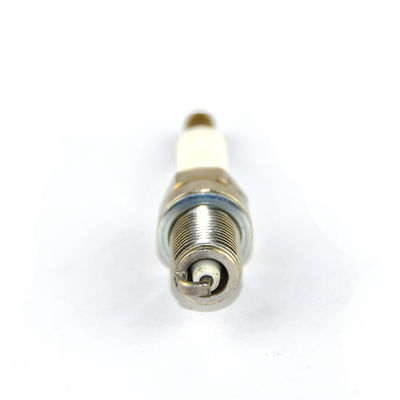

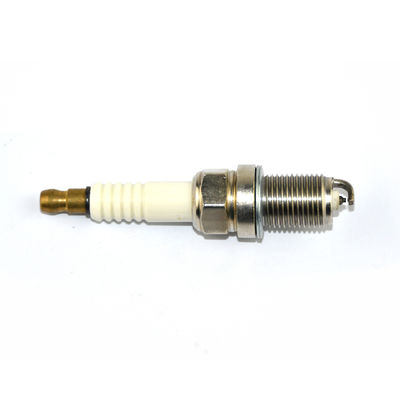

The electrode of this spark plug is Projected Double Platinum j "Gap".

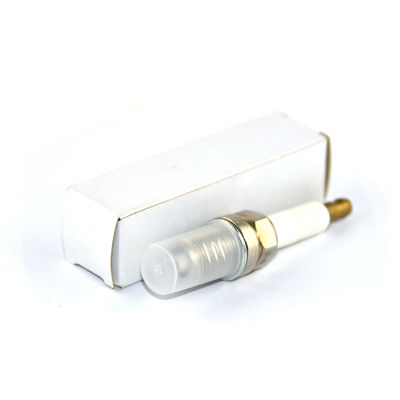

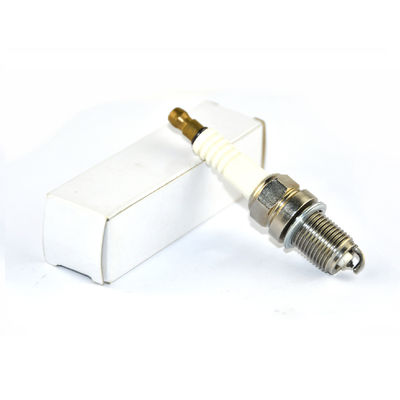

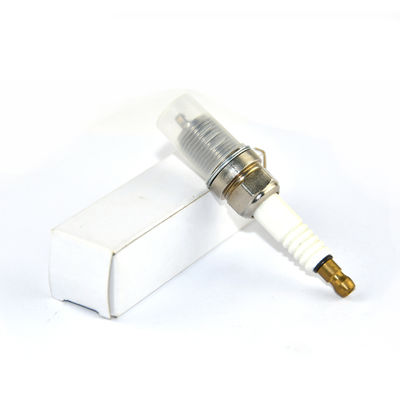

These three pictures show the packaging style of this spark plug. On the packaging, in order to better protect the electrode of the spark plug, we will add a plastic protective sleeve to the metal shell of the spark plug. A spark plug is packed in a small box and packaged separately.
3. About the Spark Plug:
The appliion of this spark plug can be below:
CUMMINS: 6B w/230 hp, 6C, L-10, ISL G
DETRIOT DIESEL: 30, 40, 50 Series
DRESSER: which accepts 14MM, 3/4" reach plugs
HERCULES: G4800, GTA4800, GTA3.7, GTA 5.6,
JOHN DEERE: 6076AFN30 (150, 200 HP), 6081HFN, 6090HFN
PERKINS: 900 Series
SACM: Model UD30 Thru 1994, Model 175 1996 & up
WARTSILA: Model 175 After 1994, W220SG
DAE WOO: GV222TIC, GE08TIC, GE12TIC, GV180TIC, GV158TIC
LIEBHERR: G9408TC, G9408TC40
MAN: E0834, E0836Resistor
Notes: We can provide samples for you to test. However, in order to test the quality of this spark plug better and more comprehensively, it is recommended that you buy a set of spark plugs for testing at a time.
4. About Our Company:
Our factory has been manufacturing spark plug for more than 58 years, we have ranked China No.1 and world No.3. Besides spark plug we also have ignition coil and cable, all types of filters, mechanical seals, and brake pad.
5. Leave Message:
If your are interested in this product or the other products which fall in our product line, please send me a message or write an email to me ( jessica@torchgroup.cn) at any time.
