Place of Origin:
China
Brand Name:
TAKUMI
Model Number:
Burgmann H7N H75
Certifiion:
IATF 16949 , ISO 14001 , ISO 9001
Contact Us
Our product including:
1: mechanical seals for water pump: equivalent with John Crane, Eagle Burgmann, Aesseal, Flygt,GLF, and US Seal, etc
2: mechanical seals spare parts: made to order Silicon Carbide, sintered silicon carbide seal rings, graphite carbon seal rings ,tungsten carbide seal rings, O rings, springs, CNC machining service.

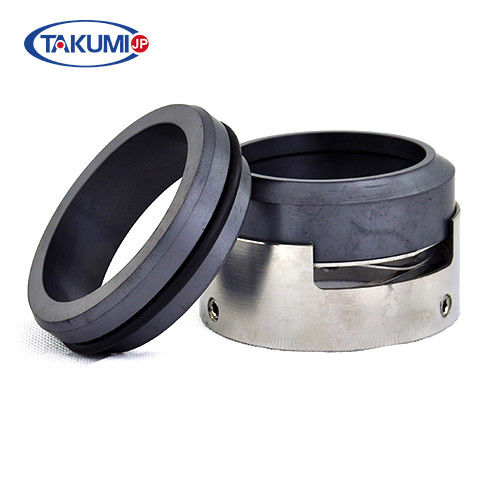

Mechanical seal H7N Operating Limits:
Pressure: ≤1.7MPa
Speed: ≤25m/s
Temperature: -20℃~+200℃
Rotary Ring:Carbon/Sic/TC
Stationary Ring:99% Ceramic/Sic/TC
Secondary Seal:VIT/NBR/EPDM
Spring and Other Parts:SUS304/SUS316
Mechanical seal H7N specs:
Rotary ring: silicon carbide
Secondary seal: NBR,EPDM,FKM,PTFE
Variant with PTFE secondary seals for high chemical resistance
Spring and parts: SS304,316
Easy to install and uninstall
Mechanical seal H7N appliion range:
Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC------180ºC
Linear Velocity: ≤ 10m/s
Medium: water,oil and minor corrosive liquid
The direction of rolling: looking from the stationary face,if the pivot be rolled in clockwise direction,spring should be in right direction rolling.
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Low solids content media
Cooling water pump
Basic sterile appliion
We have different product line dedied to different kinds of products:TORCH or TAKUMI brand bearings,oil seals,o ring etc.We have more than 500 workers,fixed assets of USD20 million,office buildings of 800 square meters and workshops of 80,000 square meters.
Package Type:
Packing Method NO.1:
1.Company standard packing .1pc in a box
2. 12 pcs in a carton
3. Pack as required
Packing Method NO.2:
1.20pcs in a plastic pallet
2.10 pallets in a big carton
3.25cartons on a pallet
FAQ (Fluently Asked Questions)
1. WHY CHOOSE TAKUMI Fluid Machinery?
1) We are manufacture, the direct source, which saves you at least 25% purchasing cost.
2) one stop service in door start with tooling, trial rub, sampling until mass productions ensures instant quality control and convenient lead time.
2. WHAT IS YOUR PRODUCT RANGE?
1) MECHANICAL SEALS:Mechanical seals, John Crane, Burgmann, Aesseal, Grundf pump seals,water pump seals,shaft seals, pump seals.
2) OEM service for water pumps.
3) Other mechanical parts and related seals including made to order Silicon Carbide, sintered silicon carbide seal rings, graphite carbon seal rings ,tungsten carbide seal rings, O rings, springs, CNC machining service.
3. WHICH INDUCTRY HAVE YOU SERVED FOR?
water pumps, chemical industry, pump mechanical seals,kettle with mechanical seals,fan mechanical seals,separation machinery, washing machines, high temperature dyeing machine, reducer, reciproing compressor crankcase and other mechanical equipment mechanical seals
4. WHAT IS YOUR SMAPLE TERM?
1) Sample in stock will be provided for free or negotiatable.
2) For custom samples, smaple cost will be charged accordingly.
5. WHAT IS YOUR PAYMENT TERM?
1) Payment way: Paypal,Western Union, Credit Card,T/T,online payment.
2) Amount below USD4000,100% in advance
3) Amount above USD4000,50% in advance, ,balance before shipment.
