MG1 Series Water Pump Mechanical Seal 25mm with Unbalanced

Name: MG1 Series Water Pump Mechanical Seal 25mm with Unbalanced
Brand: TAKUMI JAPAN AUTO PARTS CO.,LTD.
SKU: MG1-25
Price: 212.20 USD
Availability: InStock

Brand Name:	TAKUMI
Model Number:	MG1-25
MOQ:	100pieces
Delivery Time:	15-20 work days after receipt of your payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Feature:

Rubber Bellows Mechanical Seal

Material:

Graphite+Silicon Carbide

Size:

25mm, Standard Size

Pressure:

≤1.6Mpa

Speed:

≤10m/sec

Working Temperature:

-20~140℃

Supply Ability:

100000 pcs/month

Highlight:

MG1 Water Pump Mechanical Seal

Water Pump Mechanical Seal 25mm

Unbalanced Water Pump Mechanical Seal

Product Description

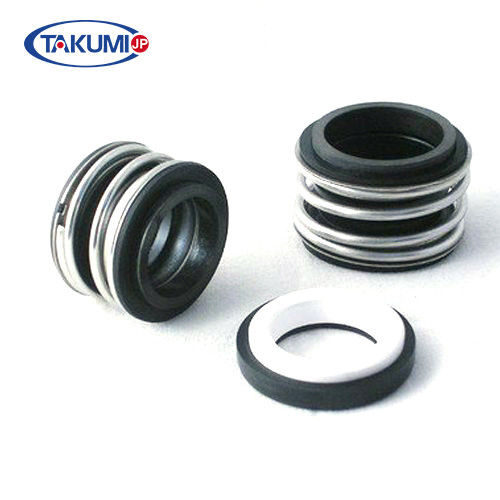

MG1 series mechanical seal for water pumps

Detailed Images

MG1 series mechanical seal for water pumps

Design Features

- Single face, single spring, unbalanced, rubber bellows structure. - The seal face is driven through the spring, and spring seat, good floating.
- Suitable for many specifiions and designs which conform to ISO3069, DI24960 AND GB6556.

Materials(to DIN24960)

- Rotary Ring: CAR/SIC/TC- Stationary Ring: CER/SIC/TC
- Spring and Other Parts: NBR/VITON/EPDM

Operating limits

- Pressure: ≤ 1.6MPa- Temperature: -20~140℃
- Speeds: ≤10m/sec
- Viscosity: ≤ 1.0Pa.s(1000cp)(Soft VS Hard); ≤ 3.5Pa.s(3500cp)(Hard VS Hard)

applications

Used in centrifugal pumps, mixer, and other rotating equipment.

Medium

Liquid waste of grains, sewage water, oil, etc.

Size Information

Model	Shaft	d1	d3	D4	db	L
MG1-20	20	20	37	38	33	21.5
MG1-22	22	22	37	38	33	21.5
MG1-24	24	24	42.5	44	38	22.5
MG1-25	25	25	42.5	44	38	23
MG1-28	28	28	49	50	44	26.5
MG1-30	30	30	49	50	44	26.5
MG1-32	32	32	53.5	55	46	27.5
MG1-35	35	35	57	59	50	28.5
MG1-38	38	38	59	61	53	30
MG1-40	40	40	62	64	55	30
MG1-45	45	45	68	70	60	30
MG1-48	48	48	70.5	74	63	30.5
MG1-50	50	50	74	77	65	30.5
MG1-55	55	55	81	83	72	35
MG1-60	60	60	88.5	91	79	38

FAQ


Q: Are you a trading company or manufacturer? A: We are a factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. If you have another question, pls feel free to contact us.
