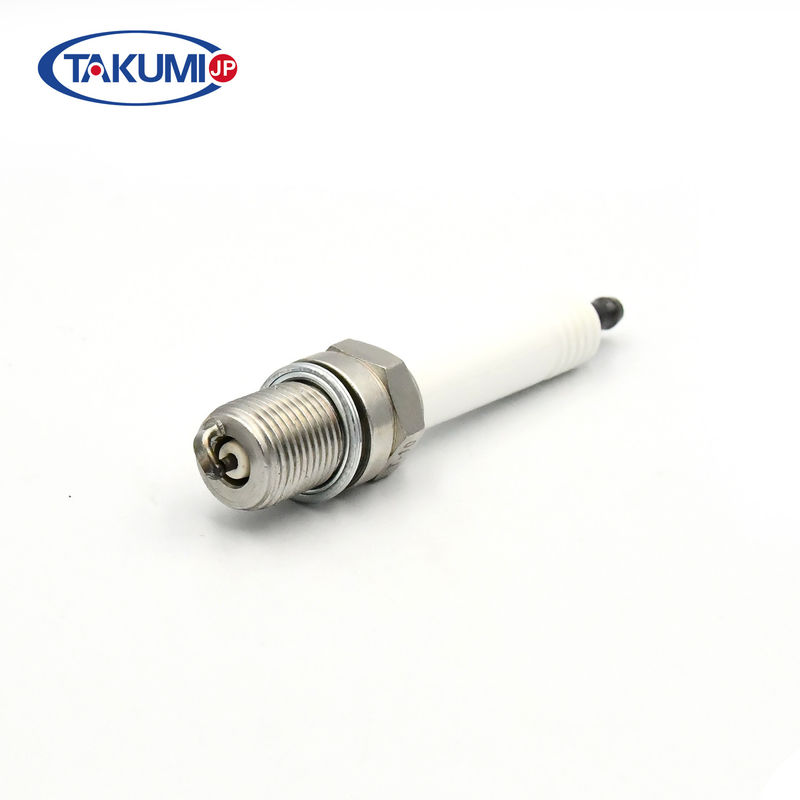

OEM Quality M18x1.5 Thread 0.3mm Gap Resistor Type Generator Spark Plug for Denso GI3-1 and Champion RB77WPCC
Basic Properties
Place of Origin:
Hunan,China
Brand Name:
TAKUMI
Model Number:
R5B12-77
Trading Properties
Minimum Order Quantity:
1
Price:
By discussed
Standard Packaging:
Tin, Plastic box, white box, Carton,As cunstomer request
Delivery Time:
30 working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
10000 pieces per month
Product Summary
OEM Quality Industrial Spark Plug Matching for RB77WPCC Denso GI3-1 Spark Plugs for RB77WPCC KB77WPCC FB77WPCC BERU 18GZ6-77-2 DENSO GI3-1, GI3-3 GI3-5 ALTRONIC L1863IP BG RB777-1 Spark Plug Specifications TypeR5B12-77 ThreadM18x1.5 Hex22.2 mm Seat TypeFlat Gap0.3 mm Heat Range77 Resistor or Non...
Product Details
Highlight:
OEM industrial spark plug
,Denso GI3-1 spark plug
,generator spark plug RB77WPCC
Thread:
M18x1.5
Reach:
20.6mm (13/16”)
Hex:
7/8”(22.2mm)
Gap:
0.3mm
Heat Range:
77
Electrode:
"J" Gap Industrial Electrode
Resistor:
Yes
Model:
R5B12-77
Fit To:
Denso: GI3-1, GI3-5 Champion: FB77WPCC:243-4291
Product Description
OEM Quality Industrial Spark Plug Matching for RB77WPCC Denso GI3-1
Spark Plugs for RB77WPCC KB77WPCC FB77WPCC BERU 18GZ6-77-2 DENSO GI3-1, GI3-3 GI3-5 ALTRONIC L1863IP BG RB777-1
Spark Plug Specifications
| Type | R5B12-77 |
|---|---|
| Thread | M18x1.5 |
| Hex | 22.2 mm |
| Seat Type | Flat |
| Gap | 0.3 mm |
| Heat Range | 77 |
| Resistor or Non-Resistor | Resistor |
| Electrode Type | J |
Cross-References
| BO-SCH: | 7306 (MR3DPP330), 7301 |
|---|---|
| CHAMPION: | RB77WPCC /KB77WPCC |
| WAUKESHA: | 60999Z/69919D |
| CU-MMINS: | 4090121/4098162/4010981/4302738 |
| GUASCOR: | 76.64.291/76.64.293/76.64.292 |
- Beru 18GZ6-77
- Beru Z162
- Champion stk 634
- CU-MMINS 4010981
- Denso 6116
- Denso GI3-1
- Denso GI3-1A
- Denso GI3-3
- Denso GI3-3A
- Denso GI3-5A
- PERKINS 486-37
- WAUKESHA 60999Z
- WAUKESHA 69919
- WAUKESHA 69919A
- WAUKESHA 69919C
- WAUKESHA 69919D
Key Benefits
- Equal life time to the original
- Competitively lower price than the original
Engine Features & Applications
Guascor gas engines cover a power range from 242 to 1,308 kWe and provide excellent installation solutions for co- and tri-generation configurations. These configurations represent one of the best ways to reduce your energy costs and your carbon footprint.
- Fuel flexibility: Can be designed to handle different gas fuels
- Capable of working with variable loads
- Robust design to operate under severe conditions
- High operational availability
- Easy maintenance
Compatible Engine Models
- CU-MMINS: Q19G, QSV81-V16, QSV91-V18
- GUASCOR: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480
- J612, J616, J620 (1995/9 - BMEP = 16 bar or less)
- 4000 Series
- SUPERIOR: 1706G2, 1712G1
- WARTSILA: W25SG, W28SG, W34SG, W20V, 34SG
- WAUKESHA AT Series: 8L-AT25GL / AT27GL (13/16" Reach Heads), 12V-AT25GL / AT27GL (13/16" Reach Heads)
- WAUKESHA VGF Series Inline 6: F18G, F18GL/GLD
- WAUKESHA VGF Series Inline 8: H24G, H24GL/GLD
- WAUKESHA VGF Series V-12: L36GL/GLD
- WAUKESHA VGF Series V-16: P48GL/GLD
- WAUKESHA VHP Series Inline 6: 2895GL (13/16" Reach Heads), 3521GL (13/16" Reach Heads)
- WAUKESHA VHP Series V-12: L5108GL (13/16" Reach Heads), L5790GL (13/16" Reach Heads), L7042GL (13/16" Reach Heads)
- WAUKESHA VHP Series V-16: P5115GL, P9390GL (13/16" Reach Heads)
- CHP Gas Engine
- Cogeneration Plants
- Power Plants
- Power House
- Cogeneration generator
Product Images
Reference Applications
| ARGILORE (Hondarribia, Spain) | ||||
|---|---|---|---|---|
| Fuel | Engine Type | Electrical Output | Thermal Output | Commissioning |
| Natural gas | 3 x FGLD 360 | 1.6 MW | 2.6 MW | 2009 / 2010 |
| Installation of a cogeneration plant for greenhouse and plant nursery. CO₂ Output ~600kg/h | ||||
| WWTP ARROYO CULEBRO (Madrid, Spain) | ||||
|---|---|---|---|---|
| Fuel | Engine Type | Electrical Output | Thermal Output | Commissioning |
| Sewage gas | 2 x FGLD 480 3 x SFGLD 560 | 4.5 MW | 2005 / 2007 | |
| Water treatment plant | ||||
| AFRICAN GLASS (Lagos, Nigeria) | ||||
|---|---|---|---|---|
| Fuel | Engine Type | Electrical Output | Thermal Output | Commissioning |
| Natural gas | 2 x SFGLD 560 | 1890 KW | 2010 | |
| Natural gas | 1x SFGLD 360 | 610 KW | ||
| Glass manufacturing & recycling industry. Exhaust energy for Glass processing. Hot water for heating. | ||||
