Welcome to TAKUMI JAPAN AUTO PARTS CO.,LTD.

Aftermarket Prechamber Spark Plug R5B12-77 For 3520 Engine

Basic Properties
Place of Origin: China
Brand Name: Torch
Model Number: R5B12-77
Trading Properties
Minimum Order Quantity: 48
Price: $38.5-$42.5/piece
Standard Packaging: standard package
Delivery Time: in 15 days
Payment Terms: T/T
Supply Ability: 10000pcs per month
Product Summary
Aftermarket maintain spare parts Spark plug R5B12-77 for 3520 engine prechamber spark plug 1. Product Details: Torch Type R5B12-77 Thread M18x1.5 Reach 20.6mm Hex 22.2mm Gap 0.3 mm Heat Range 77 Electrode Type Double J "Gap" Iridium electrode Resistor or None-resistor Resistor application G3500 ...

Product Details

Highlight:

Aftermarket Prechamber Spark Plug

,

Prechamber Spark Plug R5B12-77

,

3520 Engine Spark Plug

Thread: M18x1.5
Reach: 20.6mm
Hex: 22.2mm
Heat Range: 77
Electrode Type: Double J "Gap" Iridium Electrode
Resistor Or None-Resistor: Resistor
Gap: 0.3 Mm
Seat Type: Gasket
Application: Cummins, GUASCOR
Product Description

Aftermarket maintain spare parts Spark plug R5B12-77 for 3520 engine prechamber spark plug





1. Product Details:

Torch Type R5B12-77
Thread M18x1.5
Reach 20.6mm
Hex 22.2mm
Gap 0.3 mm
Heat Range 77
Electrode Type

Double J "Gap" Iridium electrode

Resistor or None-resistor Resistor
application

G3500 Series, G3600 Series

CUMMINS Q19G, QSV

GUASCOR FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480

612 12-Cyl. After 9/95, J616 16-Cyl. After 9/95

Replacement

Champion RB77WPCC

BOSCH 7301 BOSCH 7306

DENSO GI3-1A, GI3-3A GI3-5A

BERU 18GZ6-77-2

ALTRONIC L1863IP

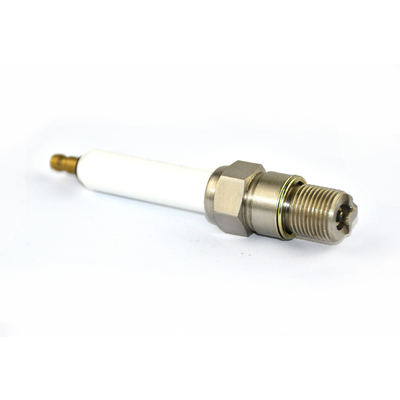

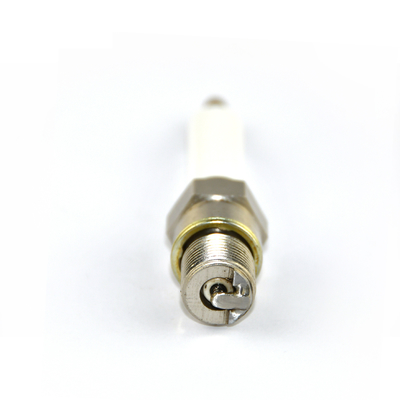

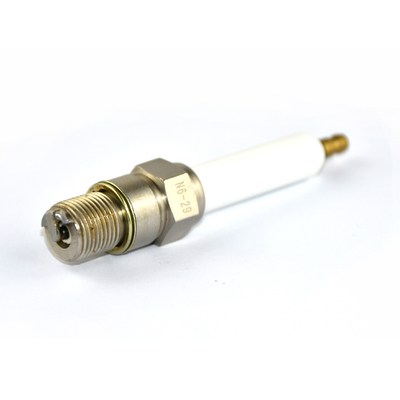

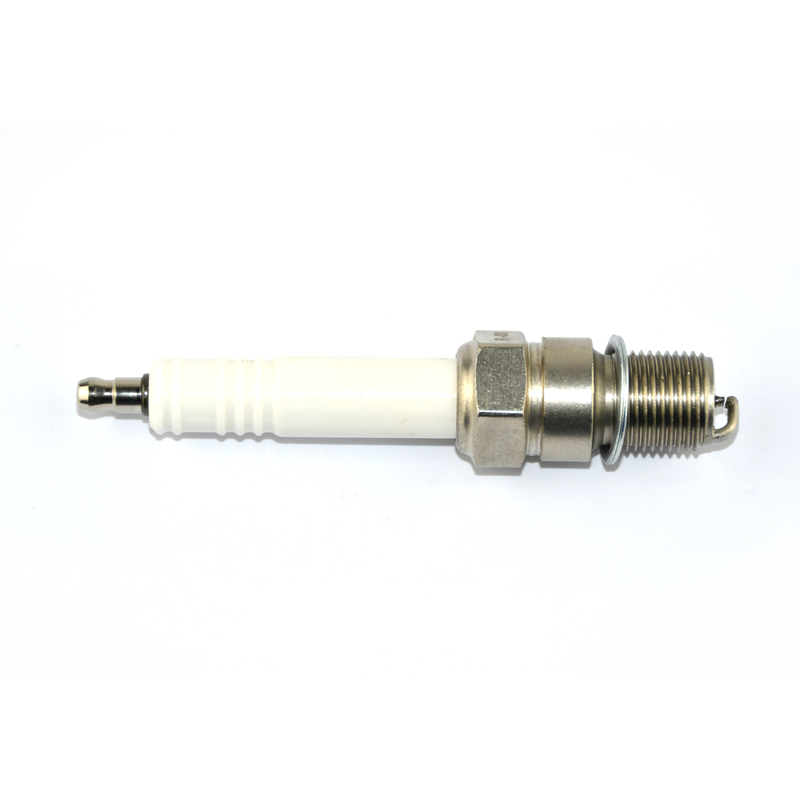

2. Photo show:



Aftermarket Prechamber Spark Plug R5B12-77 For 3520 EngineAftermarket Prechamber Spark Plug R5B12-77 For 3520 EngineAftermarket Prechamber Spark Plug R5B12-77 For 3520 EngineAftermarket Prechamber Spark Plug R5B12-77 For 3520 Engine

3. About the Spark Plug:



Aftermarket Prechamber Spark Plug R5B12-77 For 3520 Engine



4. About Our Company:

Our factory has been manufacturing spark plug for more than 58 years, we have ranked China No.1 and world No.3. Besides spark plug we also have ignition coil and cable, all types of filters, mechanical seals, and brake pad.

We have the most reliable welding technologies of platinum and iridium;Therefore, we can produce high quality spark plugs competing with any other supplier.Now, we are asked to manufacture spark plugs as OE replacement for some famous brands.



5. Leave Message:

If your are interested in this product or the other products which fall in our product line, please send me a message or write an email to me ( jessica@torchgroup.cn) at any time.
