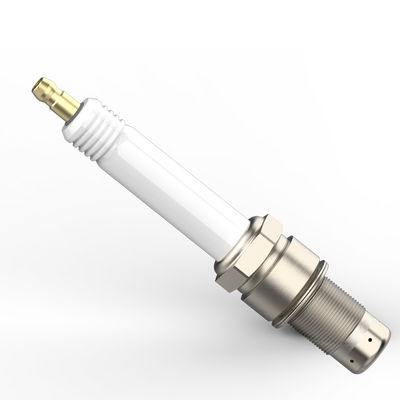

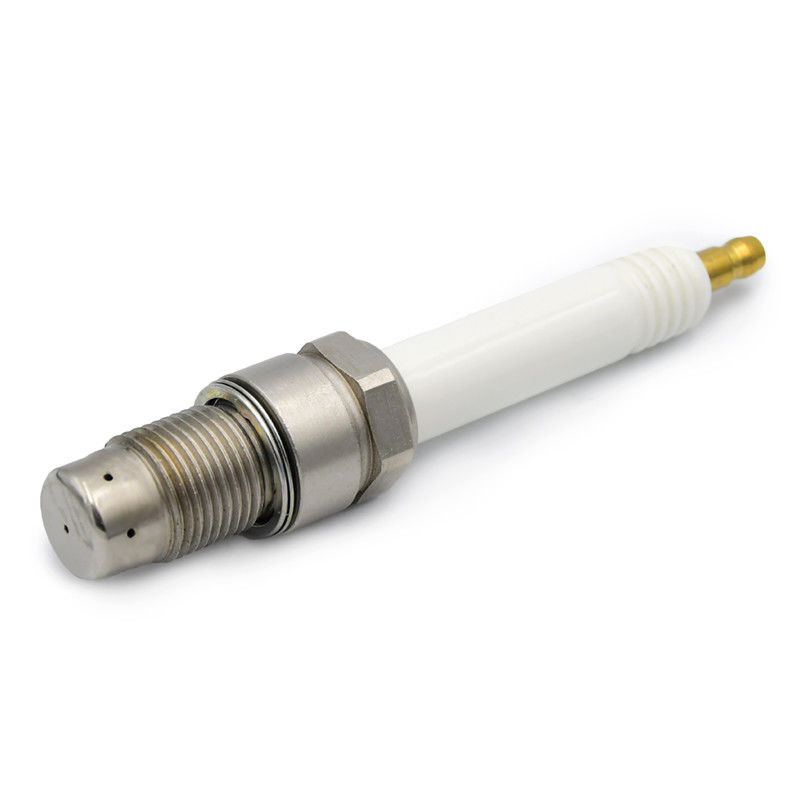

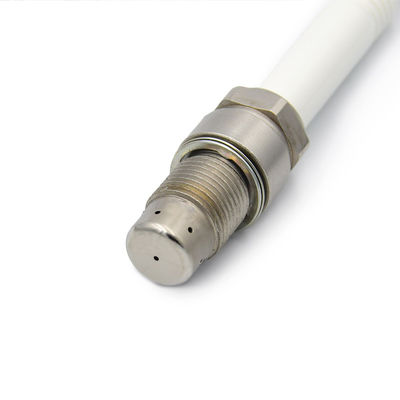

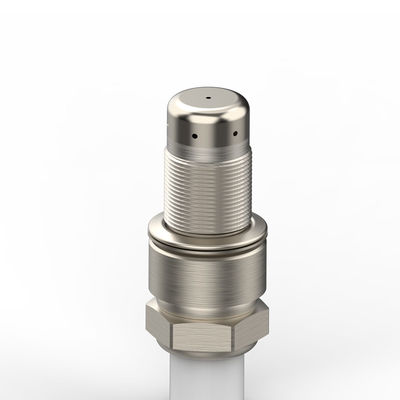

SPARK PLUG MTU X52404500062/X52404500050/X52404500027 USE FOR MTU12V4000GS ENGINES

SPARK PLUG MTU X52404500062/X52404500050/X52404500027 USE FOR MTU12V4000GS ENGINES

Place of Origin:

china

Brand Name:

TORCH

Certification:

ISO9001:2000 in 1996 Dec ISO/TS 16949:2002

Model Number:

MTU X52404500062/X52404500050/X52404500027

Contact Us

Request A Quote
Product Details
Thread:
M18*5
Reach:
28.5mm
Hex:
20.8mm
Seat Type:
Gasket
Gap:
0.3mm
Heat Range:
77
Electrode Type:
Prechamber
Resistor Or Non-Resistor:
Resistor
Note:
MTU X52404500062/X52404500050/X52404500027
Use For:
MTU12V4000GS ENGINES
Payment & Shipping Terms
Minimum Order Quantity
20pcs
Price
85-99USD
Packaging Details
One pcs in plastic box,Four pcs in tin
Payment Terms
D/P, , T/T, Western Union, MoneyGram
Supply Ability
1000pcs per month
Product Description

SPARK PLUG MTU X52404500062/X52404500050/X52404500027 USE FOR MTU12V4000GS ENGINES





Type Spark Plug R6GC1-77M
Thread M18*1.5
Reach 28.5 mm
Hex 20.8 mm
Seat Type Flat
Gap 0.3 mm
Heat Range 77
Electrode Type Pre-Chamber
Resistor or Not Resistor
Replacement

MTU:X52404500062/X52404500050/X52404500027/X52404500039/X52404500049 MPC1900/1800/X52404500056/X52404500059

BERU:18VGZ1-77/18VGZ9-77/18VGZ14-77

Application MTU12V4000GS ENGINES






SPARK PLUG MTU X52404500062/X52404500050/X52404500027 USE FOR MTU12V4000GS ENGINES 0



SPARK PLUG MTU X52404500062/X52404500050/X52404500027 USE FOR MTU12V4000GS ENGINES 1

Operation:



  • The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.
  • As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.
  • The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.


We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certifiion. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to visit our factory.









1245-2074 Generator S- R6A12 Industrial Spark Plug 41245-2074 Generator S- R6A12 Industrial Spark Plug 5

1245-2074 Generator S- R6A12 Industrial Spark Plug 6



Summary



Spark plug



Description



Type



R6GC1-77M



Suitable for



Replace

MTU:X52404500062/X52404500050/X52404500027/X52404500039/X52404500049 MPC1900/1800/X52404500056/X52404500059

BERU:18VGZ1-77/18VGZ9-77/18VGZ14-77



Main Market Europe, America, Africa ,Australian ,Southeast Asia and the Middle East.
Technical 1 Advanced Laser Welding Technology
2 High Dielectric Ceramics
3 Highly reliable monolithic resistor
4 Special Nickel plating with better corrosive resistance
Packaging 1. 4 pcs spark plugs in a tin
2.1 piece in plastic box
3. Pack as required
Quality ISO/TS 16949 /ISO 9001 QUALITY SYSTEM CERTIFIED
Production Capacity More than 1000 pcs each month
MOQ 48 pcs each shipment
Payment term T/T , L/C or can be negotiated
Place of original Hunan , china
Lead time About 40 days after received the deposit
Sample policy Free samples for serious buyers, but the cost of delivery is collect.
Port

Any port of China







Why choose us?



1. Over 60 years experiences in auto parts

2. Products under ISO9001, TS 16949 quality system certifiion

3. Good raw material and advanced technology to ensure high quality

4. Diversified products with reliable performance and competitive factory price

5. Strict on quality and 100% inspection

6. Professional technical support and service.

7. OEM accepted, tiral order accepted.
