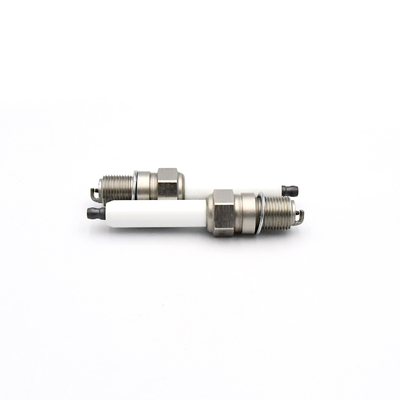

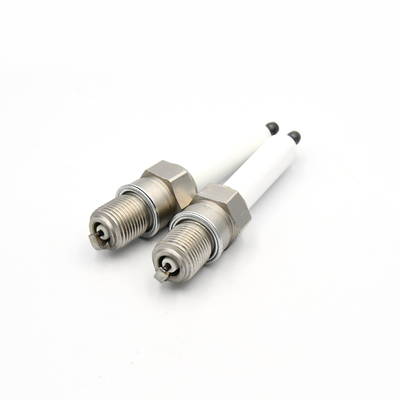

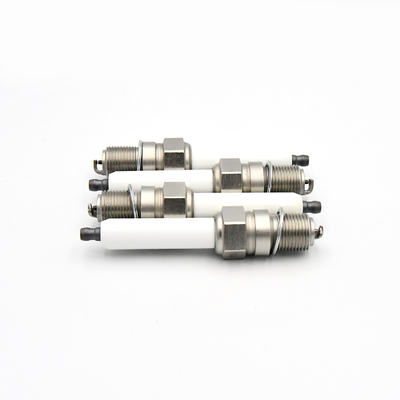

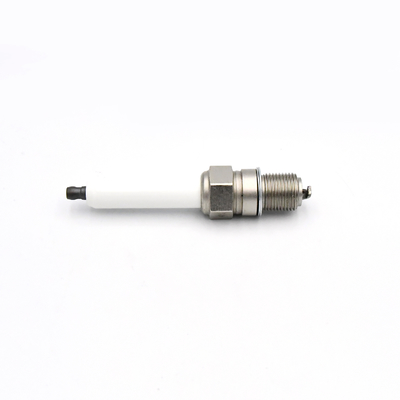

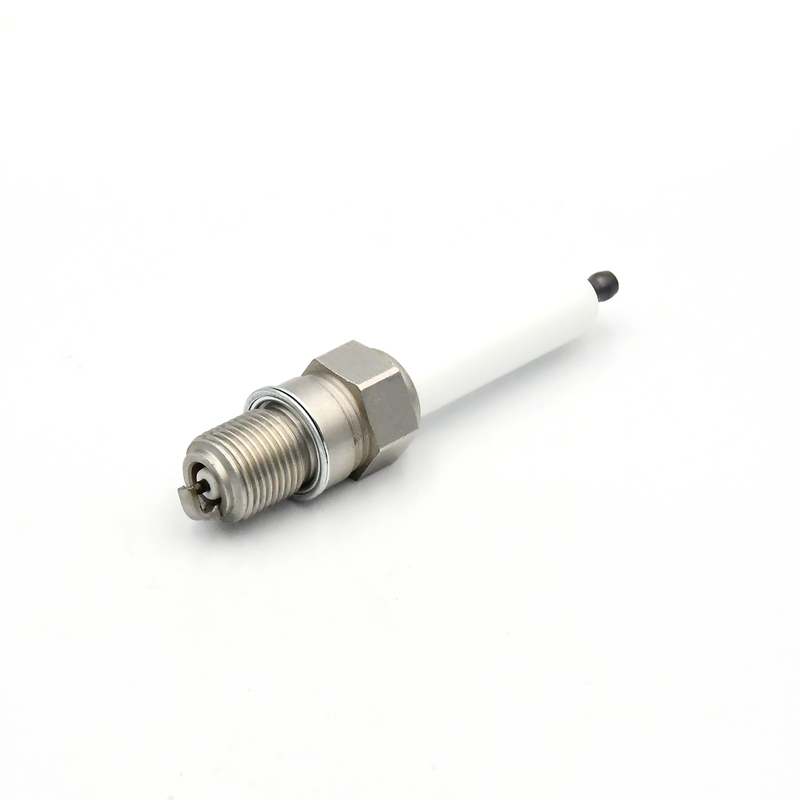

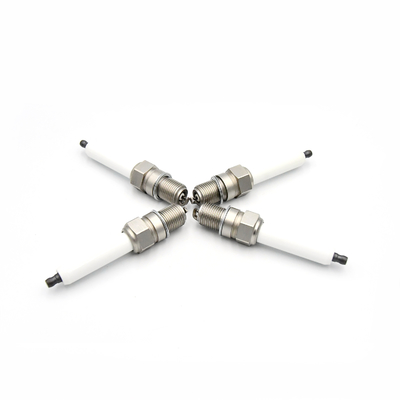

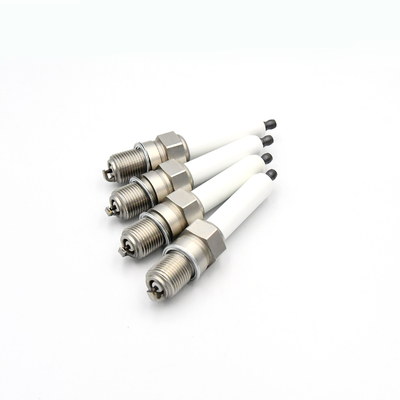

Iridium Generator Spark Plug R5B12-77 0.3MM Gap M18X1.5 Thread

Name: Iridium Generator Spark Plug R5B12-77 0.3MM Gap M18X1.5 Thread
Brand: TAKUMI JAPAN AUTO PARTS CO.,LTD.
SKU: R5B12-77C
Price: 45.5 USD
Availability: InStock

Brand Name:	No
Model Number:	R5B12-77C
MOQ:	20
Price:	USD 45.5 EACH PEICES
Delivery Time:	35-55
Payment Terms:	D/P,T/T,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Resistor:

Yes

Replacement:

RB77WPCC

Electrode Typ:

Special Design For Jenbacher

Certifiion:

ISO14001/IATF16949

Package Quantity:

Oem:

1884310062 RFN4UROP6 XUH22TT

Ribs:

Yes

Notes:

RB77WPCC

Samples:

Provid

Part Number:

R5B12-77

Gap:

0.3MM

Fit:

1245-2074

Size:

Standard Size

Electrode Enhancements:

Nickel Alloy Electrode

Threat Size:

M18X1.5

Packaging Details:

Regular Package

Supply Ability:

20000 PIECES PER MONTHS

Highlight:

Iridium generator spark plug M18X1.5

Generator spark plug 0.3MM gap

R5B12-77 iridium spark plug

Product Description

Doule Iridium Center Electrode Generator Spark Plug R5B12-77 For RB77WPCC With Certification Approved

Product Specifications

Specification	Details
Model	R5B12-77 CHAMPION: RB77WPCC KB77WPCC FB77WPCC BOSCH: 7306(MR3DPP330), 7301, 7305(MR3DII360)
Thread Size	M18x1.5
Reach	20.6mm (13/16")
Hex	7/8" (22.2mm)
Seat Type	Gasket
Gap	0.3mm
Heat Range	77
Electrode Type	"J" Gap industrial electrode
Resistor	Yes
Center Electrode Material	Iridium
Ground Electrode Material	Iridium

Cross Reference

CHAMPION: RB77WPCC/KB77WPCC/FB77WPCC

BOSCH: 7306(MR3DPP330), 7301, 7305(MR3DII360)

CATERPILLAR: 194-8518/301-6663/149-9931/479-7702/1462588

WAUKESHA: 60999Z

CUMMINS: 4090121/4098162/4010981/4302738

JENBACHER: 289383

GUASCOR: 76.64.291/76.64.293/76.64.292

Application Engines

CATERPILLAR:

G3406/G3412, G3508, G3512/G3512E/G3512H

G3516G3516E/G3516C, G3516B/G3516H/G3516A/G3516A+

G3520/G3520EG3520H, G3520C (Biogas only)

CUMMINS:

QSV81G, QSV91G, QSK60, QSK90, QSK 19G

QSK45G, QSK 60G, QSK 38G, QSK 50G

DEUTZ MWM:

G620 V-8 TBG616 V-8 TBG616 V-12 TBG616K V-8K

TBG616KV-12, TBG616KV-16K, TBG620 V-8, TBG620 V12

TBG620 V-16, TBG620K V-12K, TBG620K V-16K

GUASCOR:

FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480, SFGLD480

PERKINS:

4000 Series

SUPERIOR:

1706G2, 1712G1, 2400G Series

WARTSILA:

W25SG, W28SG, W34SG, W20V, 34SG

WAUKESHA:

APG1000, 8L-AT25GL-13/16"Rch Heads, AT27GL Series-13/16"RchHeads

12V-AT25GL/AT27GL(13116 Reach Heads), P48GL GLD, L36GL/GLD

H24G, F18GL/GLD, F18G, F18GL/GLD2895GL-13/16"Rch Heads

3521GL-13/16"RchHeads, P5115GL, P9390GL-13/16 Rch Heads

L7044GS1-13/16"Rch Heads, L7042GL.13/16"Rch Heads

7042GL-13/16"Rch Heads, L5790GL-13/16"Rch Heads

F3521GL-13/16"Rch Heads, L5108GL-13/16"Rch Heads

L5115GL, F2895GL-13/16"Rch Heads
