Industrial Spark Plug R5B12-77 with Gasket Seat Type J Gap Industrial Electrode and Resistor

Name: Industrial Spark Plug R5B12-77 with Gasket Seat Type J Gap Industrial Electrode and Resistor
Brand: TAKUMI JAPAN AUTO PARTS CO.,LTD.
SKU: R5B12-77
Price: 42.5 USD
Availability: InStock

Brand Name:	No
Model Number:	R5B12-77
MOQ:	1
Price:	42.5
Delivery Time:	35
Payment Terms:	D/P,T/T,D/A,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

R5B12-77

Thread Size:

M18x1.5

Reach:

20.6mm (13/16”)

Hex:

22.2m

Seat Type:

Gasket

Gap:

0.3mm

Heat Range:

Electrode Type:

"J" Gap Industrial Electrode

Resistor:

Yes

Center Electrode Material:

Iridium

Ground Electrode Material:

Iridium

Packaging Details:

Regular Package

Supply Ability:

20000 PIECES PER MONTHS

Highlight:

Gasket Seat Type Spark Plug

J Gap Industrial Electrode Generator Spark Plug

Resistor Industrial Spark Plug

Product Description

Spark Plug R5B12-77 Match For GI3-1 GI3-3 GI3-5 RB77WPCC With High Quality

Product Specifications

Attribute	Value
Model	R5B12-77
Thread Size	M18x1.5
Reach	20.6mm (13/16")
Hex	22.2mm
Seat Type	Gasket
Gap	0.3mm
Heat Range	77
Electrode Type	"J" Gap industrial electrode
Resistor	Yes
Center Electrode Material	Iridium
Ground Electrode Material	Iridium

Cross Reference

Brand	Model
CHAMPION	RB77WPCC/KB77WPCC/FB77WPCC
BOSCH	7308
CATERPILLAR	194-8518/301-6663/149-9931/479-7702/1462588
DENSO	GI 3-1 GI3-3 GI3-5
CUMMINS	4090121 4098162 4010981 4302738

Application Engines

CATERPILLAR:G3406/G3412,G3508,G3512/G3512E/G3512H,G3516G3516E/G3516C,G3516B/G3516H/G3516A/G3516A+,G3520/G3520EG3520H,G3520C(Biogas only)
CUMMINS:QSV81G,QSV91G,QSK60,QSK90,QSK 19G,QSK45G,QSK 60G.QSK 38G,QSK 50G
DEUTZ MWM :G620 V-8 TBG616 V-8 TBG616 V-12 TBG616K V-8K.TBG616KV-12.TBG616KV-16K,TBG620 V-8,TBG620 V12,TBG620 V-16,TBG620K V-12K,TBG620K V-16K
GUASCOR:FG180,FGLD180,FG240,FGLD240,FGLD360,FGLD480.SFGLD480,
PERKINS :4000 Series

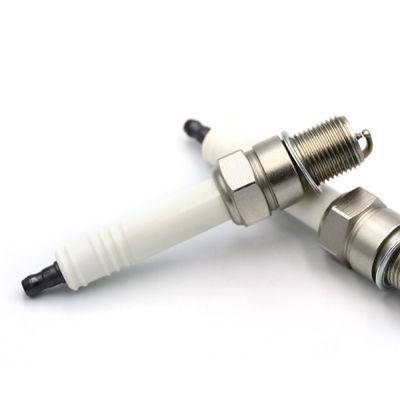

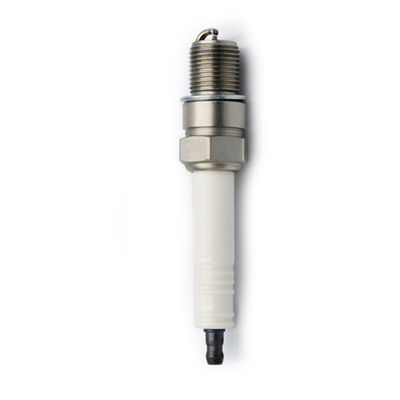

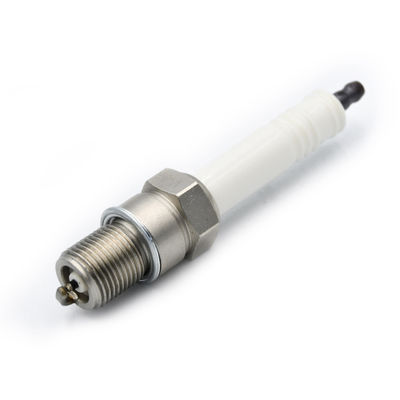

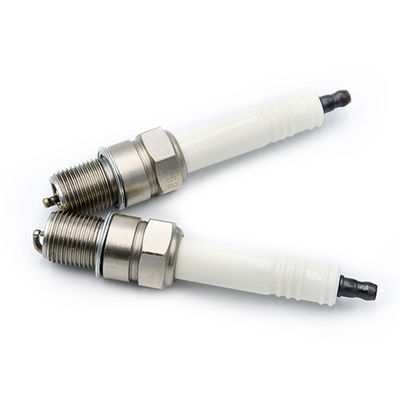

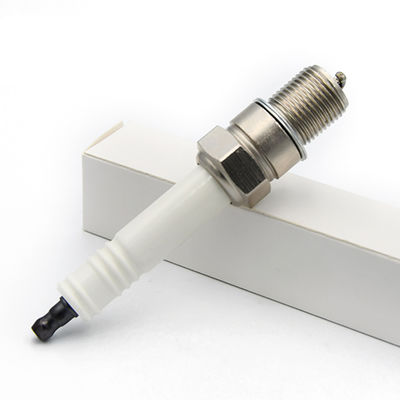

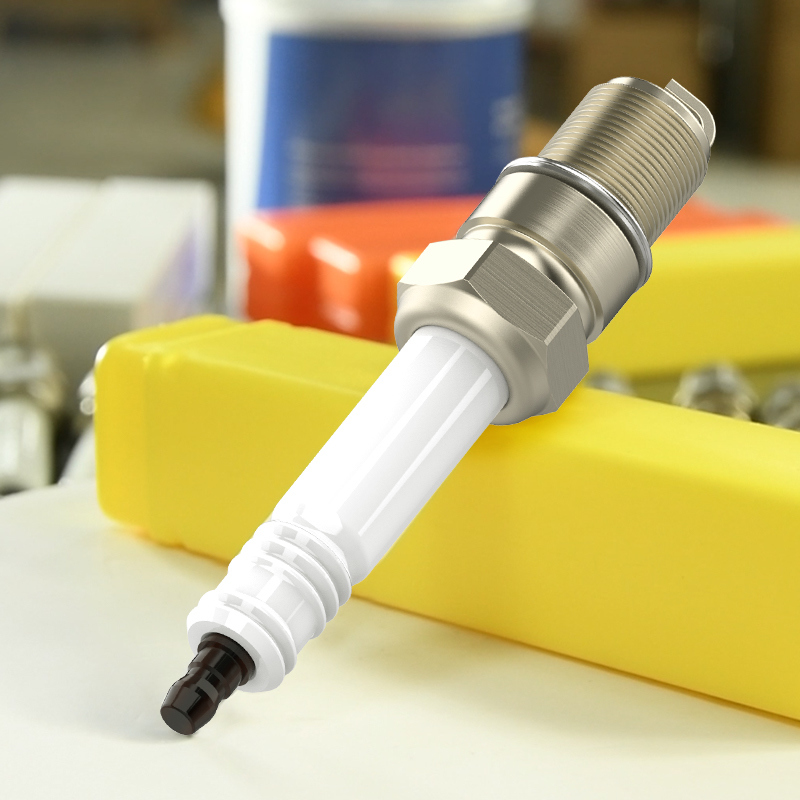

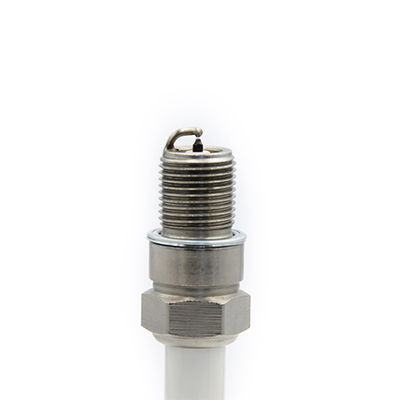

Products Images

Tags:

Products Details

Home Products

Generator Spark Plug

Industrial Spark Plug R5B12-77 with Gasket Seat Type J Gap Industrial Electrode and Resistor

All Category

Industrial Spark Plug R5B12-77 with Gasket Seat Type J Gap Industrial Electrode and Resistor

Brand Name:	No
Model Number:	R5B12-77
MOQ:	1
Price:	42.5
Packaging Details:	Regular Package
Payment Terms:	D/P,T/T,D/A,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

Model Number:

R5B12-77

Model:

R5B12-77

Thread Size:

M18x1.5

Reach:

20.6mm (13/16”)

Hex:

22.2m

Seat Type:

Gasket

Gap:

0.3mm

Heat Range:

Electrode Type:

"J" Gap Industrial Electrode

Resistor:

Yes

Center Electrode Material:

Iridium

Ground Electrode Material:

Iridium

Minimum Order Quantity:

Price:

42.5

Packaging Details:

Regular Package

Delivery Time:

Payment Terms:

D/P,T/T,D/A,Western Union

Supply Ability:

20000 PIECES PER MONTHS

Highlight:

Gasket Seat Type Spark Plug

J Gap Industrial Electrode Generator Spark Plug

Resistor Industrial Spark Plug

Product Description

Spark Plug R5B12-77 Match For GI3-1 GI3-3 GI3-5 RB77WPCC With High Quality

Product Specifications

Attribute	Value
Model	R5B12-77
Thread Size	M18x1.5
Reach	20.6mm (13/16")
Hex	22.2mm
Seat Type	Gasket
Gap	0.3mm
Heat Range	77
Electrode Type	"J" Gap industrial electrode
Resistor	Yes
Center Electrode Material	Iridium
Ground Electrode Material	Iridium

Cross Reference

Brand	Model
CHAMPION	RB77WPCC/KB77WPCC/FB77WPCC
BOSCH	7308
CATERPILLAR	194-8518/301-6663/149-9931/479-7702/1462588
DENSO	GI 3-1 GI3-3 GI3-5
CUMMINS	4090121 4098162 4010981 4302738

Application Engines

Products Images
