SiC SiC HNBR Auto Mechanical Seal with 16 mm Shaft Diameter for Commercial Vehicles

Basic Properties
Place of Origin: China
Certification: IATF16949
Model Number: C16A31HVH-2
Trading Properties
Minimum Order Quantity: 15000
Price: 3.2$
Standard Packaging: 200 pcs/carton
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 100000 sets 30 days
Product Summary
SiC SiC HNBR Auto Mechanical Seal C16A31HVH-2 Product Specifications Shaft Diameter 15.918 mm Seat Outer Diameter (O.D.) 36.5 mm Working Height 10.8 mm Rotary Ring Material Silicon Carbide (SiC) Stationary Ring Material Silicon Carbide (SiC) Elastomer (O-ring) Material HNBR (Hydrogenated Nitrile ...

Product Details

Highlight:

SiC mechanical seal for commercial vehicles

,

HNBR auto mechanical seal 16mm

,

water pump mechanical seal with warranty

Product Description

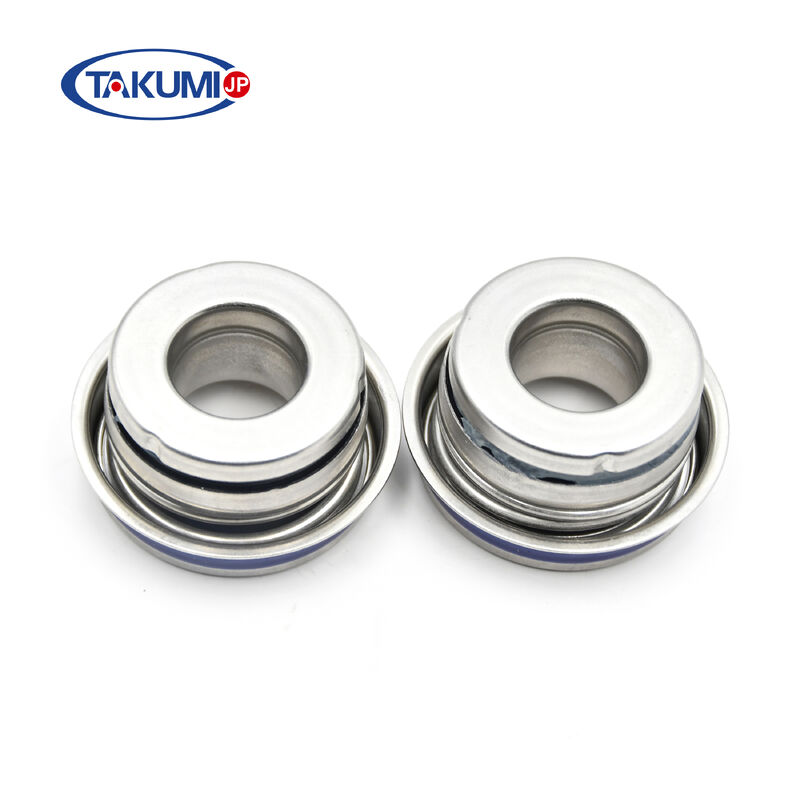

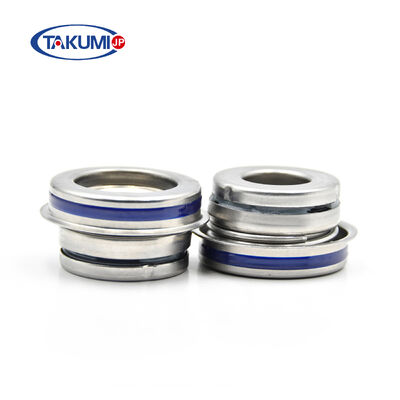

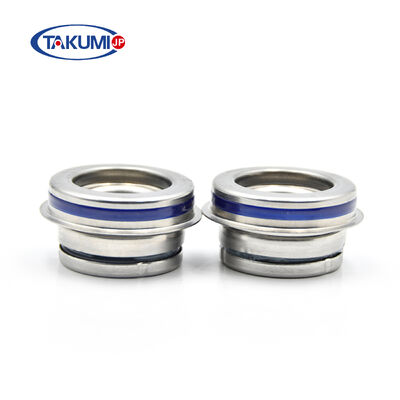

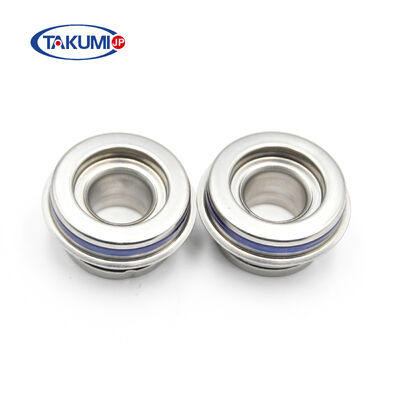

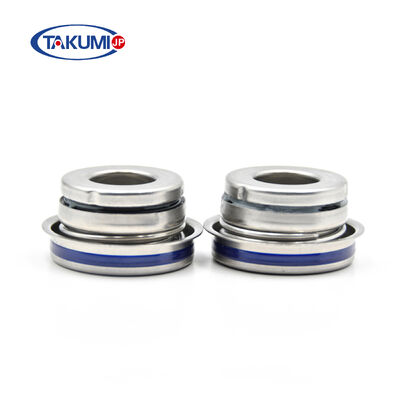

SiC SiC HNBR Auto Mechanical Seal C16A31HVH-2
Product Specifications
Shaft Diameter 15.918  mm
Seat Outer Diameter (O.D.) 36.5 mm
Working Height 10.8 mm
Rotary Ring Material Silicon Carbide (SiC)
Stationary Ring Material Silicon Carbide (SiC)
Elastomer (O-ring) Material HNBR (Hydrogenated Nitrile Butadiene Rubber)
Metal Part SUS 304 stainless steel
C16A31HVHV 1
C16A31HVHV 2
Manufacturer Profile

Founded in 2007, TAKUMI AUTO PARTS specializes in spark plugs, mechanical seals, and ignition coils. Our automobile seals branch primarily produces car water pump mechanical seals and special ceramics, including aluminum products, silicon carbide products, and air conditioning compressor terminals.

The Automobile Seals Branch is the largest car water pump mechanical seals manufacturer in China, with an annual production capacity of 20 million sets. Occupying the highest O.E. matching rate in China, it maintains a leading position in the industry.

Having passed ISO9001 and IATF16949 certifications, the Automobile Seals Branch consistently improves based on its powerful quality assurance capacity.

Automotive Seal Production Facility Automated Manufacturing Equipment
Packaging Options
Blister Packaging for Mechanical Seals Cardboard Box Packaging for Mechanical Seals
